ES|QL aggregation functions

The STATS command supports these aggregate functions:

• AVG
• COUNT
• COUNT_DISTINCT
• MAX
• MEDIAN
• MEDIAN_ABSOLUTE_DEVIATION
• MIN
• PERCENTILE
• [preview] ST_CENTROID_AGG
• [preview] ST_EXTENT_AGG
• STD_DEV
• SUM
• TOP
• [preview] VALUES
• WEIGHTED_AVG

Syntax

×

Parameters

number

Expression that outputs values to average.

Description

The average of a numeric field.

Supported types

Examples

FROM employees
| STATS AVG(height)

The expression can use inline functions. For example, to calculate the average over a multivalued column, first use MV_AVG to average the multiple values per row, and use the result with the AVG function

FROM employees
| STATS avg_salary_change = ROUND(AVG(MV_AVG(salary_change)), 10)

Syntax

×

Parameters

field

Expression that outputs values to be counted. If omitted, equivalent to COUNT(*) (the number of rows).

Description

Returns the total number (count) of input values.

Supported types

Examples

FROM employees
| STATS COUNT(height)

To count the number of rows, use COUNT() or COUNT(*)

FROM employees
| STATS count = COUNT(*) BY languages
| SORT languages DESC

The expression can use inline functions. This example splits a string into multiple values using the SPLIT function and counts the values

ROW words="foo;bar;baz;qux;quux;foo"
| STATS word_count = COUNT(SPLIT(words, ";"))

To count the number of times an expression returns TRUE use a WHERE command to remove rows that shouldn’t be included

ROW n=1
| WHERE n < 0
| STATS COUNT(n)

To count the same stream of data based on two different expressions use the pattern COUNT(<expression> OR NULL). This builds on the three-valued logic (3VL) of the language: TRUE OR NULL is TRUE, but FALSE OR NULL is NULL, plus the way COUNT handles NULLs: COUNT(TRUE) and COUNT(FALSE) are both 1, but COUNT(NULL) is 0.

ROW n=1
| STATS COUNT(n > 0 OR NULL), COUNT(n < 0 OR NULL)

Syntax

×

Parameters

field

Column or literal for which to count the number of distinct values.

precision

Precision threshold. Refer to AGG-COUNT-DISTINCT-APPROXIMATE. The maximum supported value is 40000. Thresholds above this number will have the same effect as a threshold of 40000. The default value is 3000.

Description

Returns the approximate number of distinct values.

Supported types

Examples

FROM hosts
| STATS COUNT_DISTINCT(ip0), COUNT_DISTINCT(ip1)

With the optional second parameter to configure the precision threshold

FROM hosts
| STATS COUNT_DISTINCT(ip0, 80000), COUNT_DISTINCT(ip1, 5)

The expression can use inline functions. This example splits a string into multiple values using the SPLIT function and counts the unique values

ROW words="foo;bar;baz;qux;quux;foo"
| STATS distinct_word_count = COUNT_DISTINCT(SPLIT(words, ";"))

Computing exact counts requires loading values into a set and returning its size. This doesn’t scale when working on high-cardinality sets and/or large values as the required memory usage and the need to communicate those per-shard sets between nodes would utilize too many resources of the cluster.

This COUNT_DISTINCT function is based on the HyperLogLog++ algorithm, which counts based on the hashes of the values with some interesting properties:

• configurable precision, which decides on how to trade memory for accuracy,
• excellent accuracy on low-cardinality sets,
• fixed memory usage: no matter if there are tens or billions of unique values, memory usage only depends on the configured precision.

For a precision threshold of c, the implementation that we are using requires about c * 8 bytes.

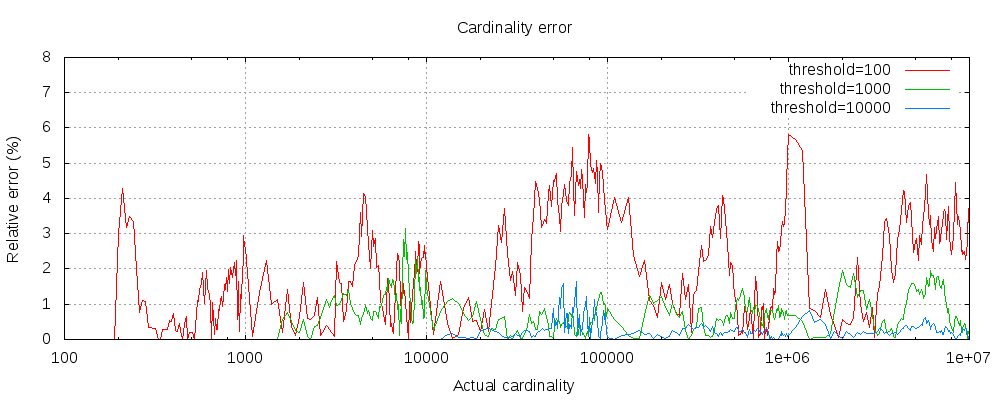

The following chart shows how the error varies before and after the threshold:

For all 3 thresholds, counts have been accurate up to the configured threshold. Although not guaranteed, this is likely to be the case. Accuracy in practice depends on the dataset in question. In general, most datasets show consistently good accuracy. Also note that even with a threshold as low as 100, the error remains very low (1-6% as seen in the above graph) even when counting millions of items.

The HyperLogLog++ algorithm depends on the leading zeros of hashed values, the exact distributions of hashes in a dataset can affect the accuracy of the cardinality.

The COUNT_DISTINCT function takes an optional second parameter to configure the precision threshold. The precision_threshold options allows to trade memory for accuracy, and defines a unique count below which counts are expected to be close to accurate. Above this value, counts might become a bit more fuzzy. The maximum supported value is 40000, thresholds above this number will have the same effect as a threshold of 40000. The default value is 3000.

Syntax

×

Parameters

field

Description

The maximum value of a field.

Supported types

Examples

FROM employees
| STATS MAX(languages)

The expression can use inline functions. For example, to calculate the maximum over an average of a multivalued column, use MV_AVG to first average the multiple values per row, and use the result with the MAX function

FROM employees
| STATS max_avg_salary_change = MAX(MV_AVG(salary_change))

Syntax

×

Parameters

number

Expression that outputs values to calculate the median of.

Description

The value that is greater than half of all values and less than half of all values, also known as the 50% PERCENTILE.

Supported types

Examples

FROM employees
| STATS MEDIAN(salary), PERCENTILE(salary, 50)

The expression can use inline functions. For example, to calculate the median of the maximum values of a multivalued column, first use MV_MAX to get the maximum value per row, and use the result with the MEDIAN function

FROM employees
| STATS median_max_salary_change = MEDIAN(MV_MAX(salary_change))

Syntax

×

Parameters

number

Description

Returns the median absolute deviation, a measure of variability. It is a robust statistic, meaning that it is useful for describing data that may have outliers, or may not be normally distributed. For such data it can be more descriptive than standard deviation. It is calculated as the median of each data point’s deviation from the median of the entire sample. That is, for a random variable X, the median absolute deviation is median(|median(X) - X|).

Supported types

Examples

FROM employees
| STATS MEDIAN(salary), MEDIAN_ABSOLUTE_DEVIATION(salary)

The expression can use inline functions. For example, to calculate the median absolute deviation of the maximum values of a multivalued column, first use MV_MAX to get the maximum value per row, and use the result with the MEDIAN_ABSOLUTE_DEVIATION function

FROM employees
| STATS m_a_d_max_salary_change = MEDIAN_ABSOLUTE_DEVIATION(MV_MAX(salary_change))

Syntax

×

Parameters

field

Description

The minimum value of a field.

Supported types

Examples

FROM employees
| STATS MIN(languages)

The expression can use inline functions. For example, to calculate the minimum over an average of a multivalued column, use MV_AVG to first average the multiple values per row, and use the result with the MIN function

FROM employees
| STATS min_avg_salary_change = MIN(MV_AVG(salary_change))

Syntax

×

Parameters

number

percentile

Description

Returns the value at which a certain percentage of observed values occur. For example, the 95th percentile is the value which is greater than 95% of the observed values and the 50th percentile is the MEDIAN.

Supported types

Examples

FROM employees
| STATS p0 = PERCENTILE(salary,  0)
     , p50 = PERCENTILE(salary, 50)
     , p99 = PERCENTILE(salary, 99)

The expression can use inline functions. For example, to calculate a percentile of the maximum values of a multivalued column, first use MV_MAX to get the maximum value per row, and use the result with the PERCENTILE function

FROM employees
| STATS p80_max_salary_change = PERCENTILE(MV_MAX(salary_change), 80)

There are many different algorithms to calculate percentiles. The naive implementation simply stores all the values in a sorted array. To find the 50th percentile, you simply find the value that is at my_array[count(my_array) * 0.5].

Clearly, the naive implementation does not scale — the sorted array grows linearly with the number of values in your dataset. To calculate percentiles across potentially billions of values in an Elasticsearch cluster, approximate percentiles are calculated.

The algorithm used by the percentile metric is called TDigest (introduced by Ted Dunning in Computing Accurate Quantiles using T-Digests).

When using this metric, there are a few guidelines to keep in mind:

• Accuracy is proportional to q(1-q). This means that extreme percentiles (e.g. 99%) are more accurate than less extreme percentiles, such as the median
• For small sets of values, percentiles are highly accurate (and potentially 100% accurate if the data is small enough).
• As the quantity of values in a bucket grows, the algorithm begins to approximate the percentiles. It is effectively trading accuracy for memory savings. The exact level of inaccuracy is difficult to generalize, since it depends on your data distribution and volume of data being aggregated

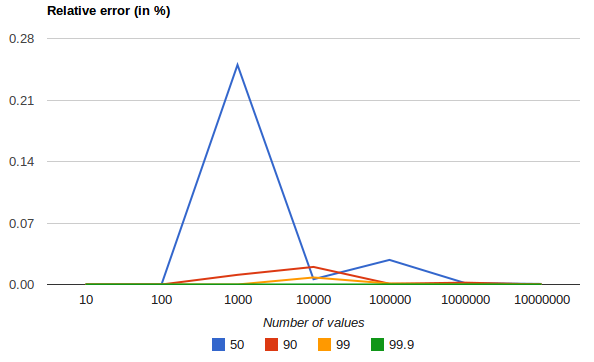

The following chart shows the relative error on a uniform distribution depending on the number of collected values and the requested percentile:

It shows how precision is better for extreme percentiles. The reason why error diminishes for large number of values is that the law of large numbers makes the distribution of values more and more uniform and the t-digest tree can do a better job at summarizing it. It would not be the case on more skewed distributions.

Syntax

×

Parameters

field

Description

Calculate the spatial centroid over a field with spatial point geometry type.

Supported types

Example

FROM airports
| STATS centroid=ST_CENTROID_AGG(location)

Syntax

×

Parameters

field

Description

Calculate the spatial extent over a field with geometry type. Returns a bounding box for all values of the field.

Supported types

Example

FROM airports
| WHERE country == "India"
| STATS extent = ST_EXTENT_AGG(location)

Syntax

×

Parameters

number

Description

The standard deviation of a numeric field.

Supported types

Examples

FROM employees
| STATS STD_DEV(height)

The expression can use inline functions. For example, to calculate the standard deviation of each employee’s maximum salary changes, first use MV_MAX on each row, and then use STD_DEV on the result

FROM employees
| STATS stddev_salary_change = STD_DEV(MV_MAX(salary_change))

Syntax

×

Parameters

number

Description

The sum of a numeric expression.

Supported types

Examples

FROM employees
| STATS SUM(languages)

The expression can use inline functions. For example, to calculate the sum of each employee’s maximum salary changes, apply the MV_MAX function to each row and then sum the results

FROM employees
| STATS total_salary_changes = SUM(MV_MAX(salary_change))

Syntax

×

Parameters

field

The field to collect the top values for.

limit

The maximum number of values to collect.

order

The order to calculate the top values. Either asc or desc.

Description

Collects the top values for a field. Includes repeated values.

Supported types

Example

FROM employees
| STATS top_salaries = TOP(salary, 3, "desc"), top_salary = MAX(salary)

Syntax

×

Parameters

field

Description

Returns all values in a group as a multivalued field. The order of the returned values isn’t guaranteed. If you need the values returned in order use MV_SORT.

Supported types

Example

FROM employees
| EVAL first_letter = SUBSTRING(first_name, 0, 1)
| STATS first_name = MV_SORT(VALUES(first_name)) BY first_letter
| SORT first_letter

Syntax

×

Parameters

number

A numeric value.

weight

A numeric weight.

Description

The weighted average of a numeric expression.

Supported types

Example

FROM employees
| STATS w_avg = WEIGHTED_AVG(salary, height) BY languages
| EVAL w_avg = ROUND(w_avg)
| KEEP w_avg, languages
| SORT languages
