How to ingest data from AWS S3 into Elastic Cloud - Part 1 : Elastic Serverless Forwarder

This is the first installment in a multi-part blog series exploring different options for ingesting data from AWS S3 into Elastic Cloud.

Elasticsearch offers several options for ingesting data from AWS S3 buckets, allowing customers to select the most suitable method based on their specific needs and architectural strategy.

These are the key options for ingesting data from AWS S3:

Elastic Serverless Forwarder (ESF) - our focus in this blog
Elastic Agent - part 2
Elastic S3 Native Connector - part 3

Options Comparison

Features	ESF	Elastic Agent	S3 Connector
Logs	✅	✅	✅[[^1]]
Metrics	❌	✅	✅[[^2]]
Cost	Medium-Lambda,SQS	Low-EC2,SQS	Low-Elastic Enterprise Search
Scaling	Auto - Unlimited	EC2 instance size	Enterprise Search Node size
Operation	Low - Monitor Lambda function	High - Manage Agents	Low
PrivateLink	✅	✅	NA (Pull from S3)
Primary Use Case	Logs	Logs & Metrics	Content & Search

Note1: ESF doesn't support metrics collection due to AWS limitation on services that can trigger Lambda function and you can't invoke Lambda using subscription filter on CloudWatch metrics. However, taking cost consideration into account it is possible to store metrics in S3 and via SQS trigger ingest into Elastic.

Note2: [[^1]][[^2]]Although S3 connector can pull logs and metrics from S3 bucket, it is most suited for ingesting content, files, images and other data types

In this blog we will focus on how to ingest data from AWS S3 using Elastic Serverless Forwarder(ESF). In the next parts, we will explore Elastic Agent and Elastic S3 Native Connector methods.

Let's begin.

Follow these steps to launch the Elastic Cloud deployment:

Elastic Cloud

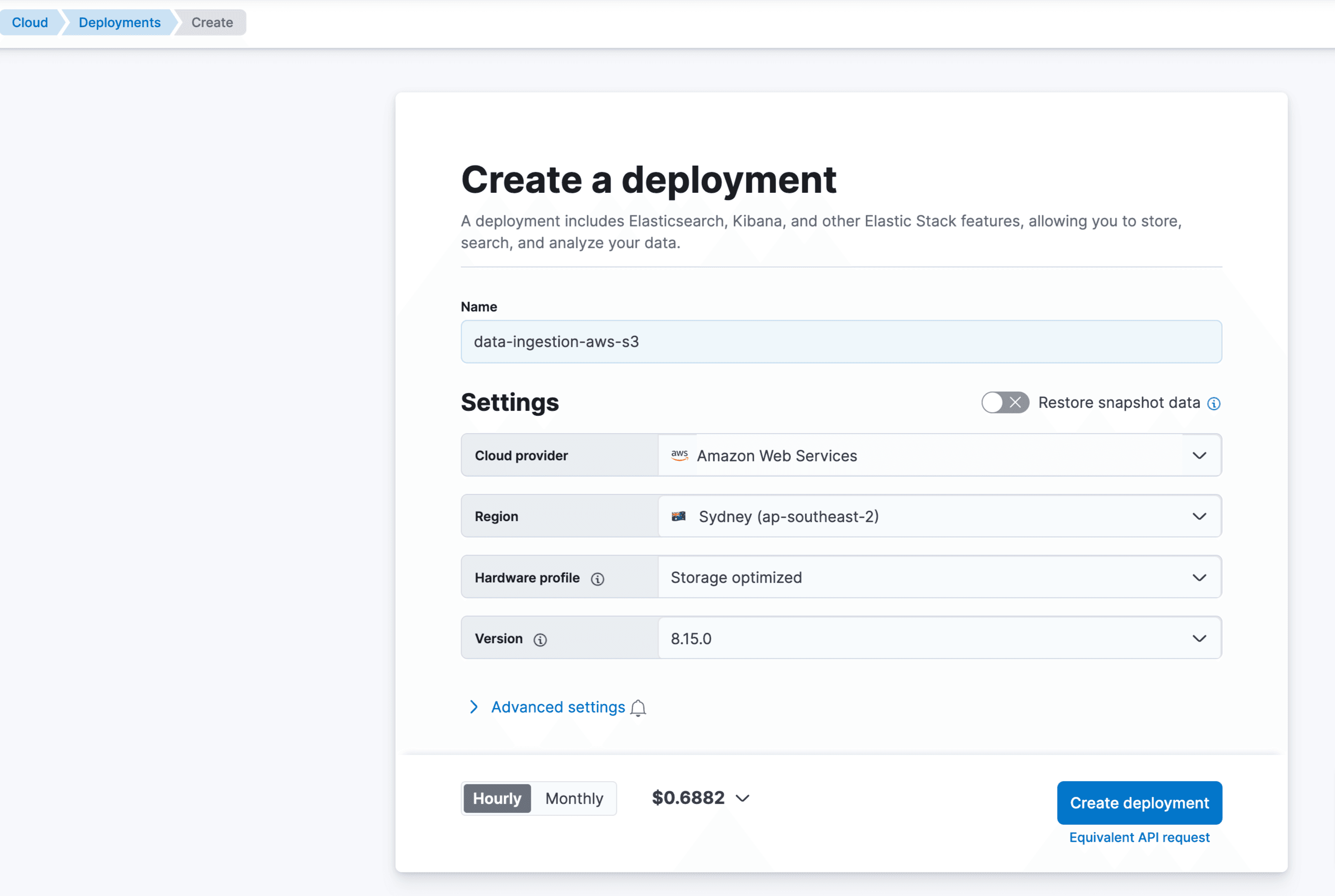

Create an account if not created already and create an Elastic deployment in AWS.

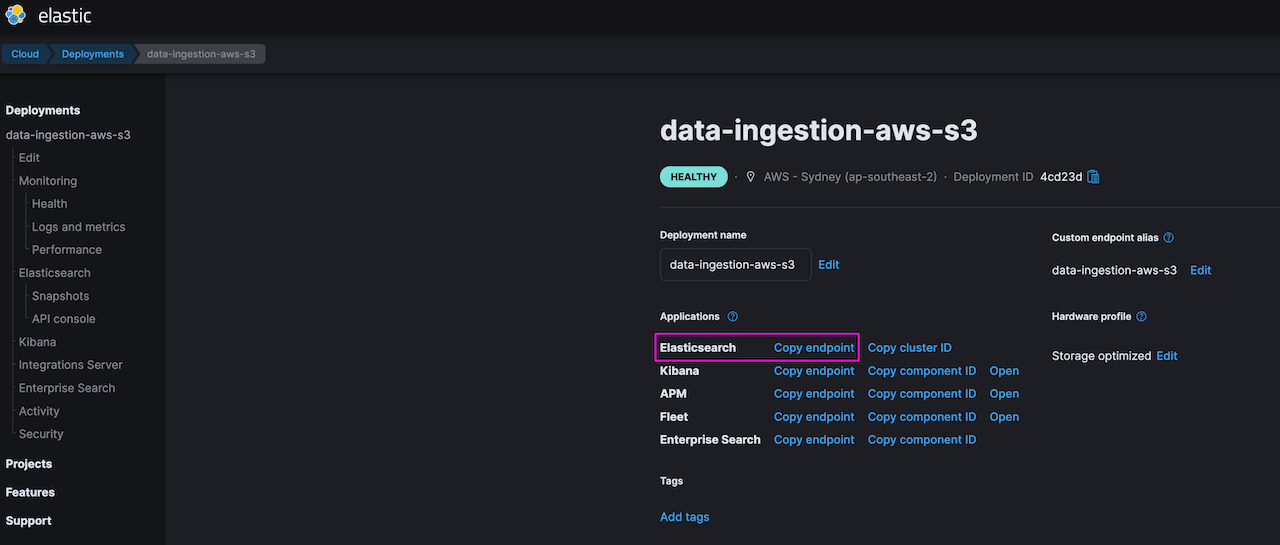

Once the deployment is created, note the Elasticsearch endpoint. This can be found in the Elastic Cloud console under -> Manage -> Deployments.

Elastic Serverless Forwarder

The Elastic Serverless Forwarder is an AWS Lambda function that forward logs such as VPC Flow logs, WAF, Cloud Trail etc. from AWS environment to Elastic. It can be used to send data to Elastic Cloud as well as self-managed deployment.

Features

Support multiple inputs
- S3 (via SQS event notification)
- Kinesis Data Streams
- CloudWatch Logs subscription filters
- SQS message payload
At least once delivery using "continuing queue" and "replay queue" (created automatically by serverless forwarder)
Support data transfer over PrivateLink which allows data transfer within the AWS Virtual Private Cloud (or VPC) and not on public network.
Lambda function is an AWS Serverless compute managed service with automatic scaling in response to code execution request
Function execution time is optimised with optimal memory size allocated as required
Pay as you go pricing, only pay for compute time during Lambda function execution and for SQS event notification

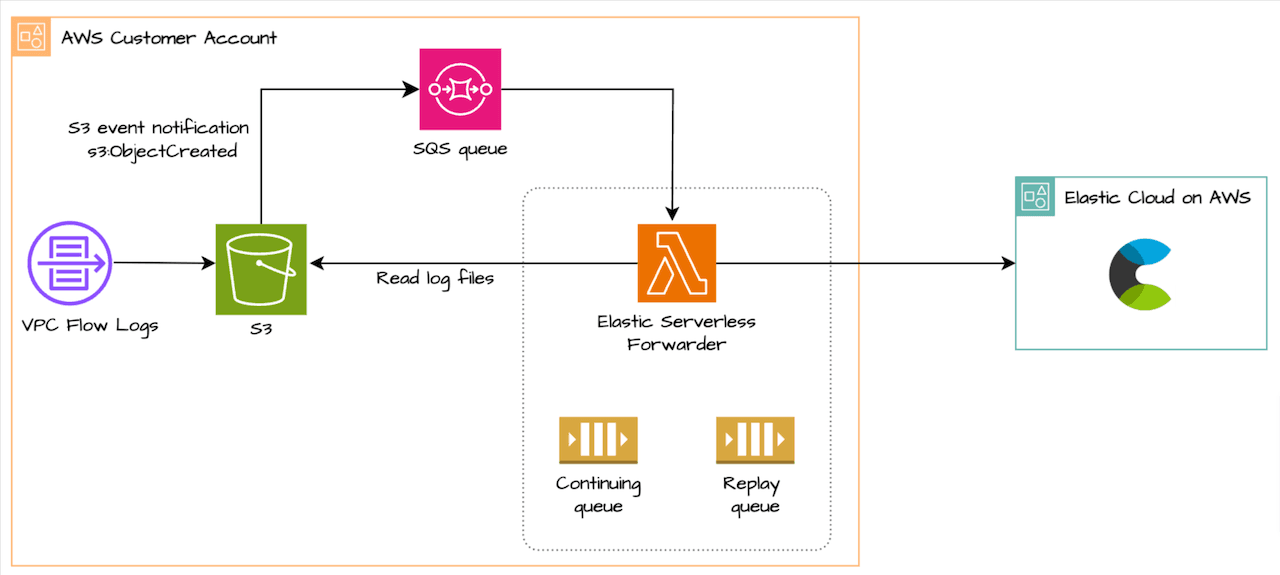

Data Flow

We will use S3 input with SQS notification to send VPC flow logs to Elastic Cloud:

VPC flow log is configured to write to S3 bucket
Once log is written to S3 bucket, S3 event notification (S3:ObjectCreated) is sent to SQS
SQS event notification containing event metadata triggers the Lambda function which read the logs from the bucket
Continuing queue is created when forwarder is deployed and ensures at least once delivery. Forwarder keeps track of last event sent and helps in processing pending events when forwarder function exceed runtime of 15 min (Lambda max default)
Replay queue is also created when forwarder is deployed and handles log ingestion exceptions. Forwarder keeps track of failed events and writes them to the replay queue for later ingestion. For e.g. in my testing, I put the wrong Elastic API key, causing authentication failure, which filled up the replay queue. You can enable the replay queue as a trigger for the ESF lambda function to consume the messages from the S3 bucket again. It is important to address the delivery failure first; otherwise message will accumulate in the replay queue. You can set this trigger permanently but may need to remove/re-enable depending on the message failure issue. To enable the trigger go to SQS -> elastic-serverless-forwarder-replay-queue- -> under Lambda triggers -> Configure Lambda function trigger -> Select the ESF lamnda function

Set up

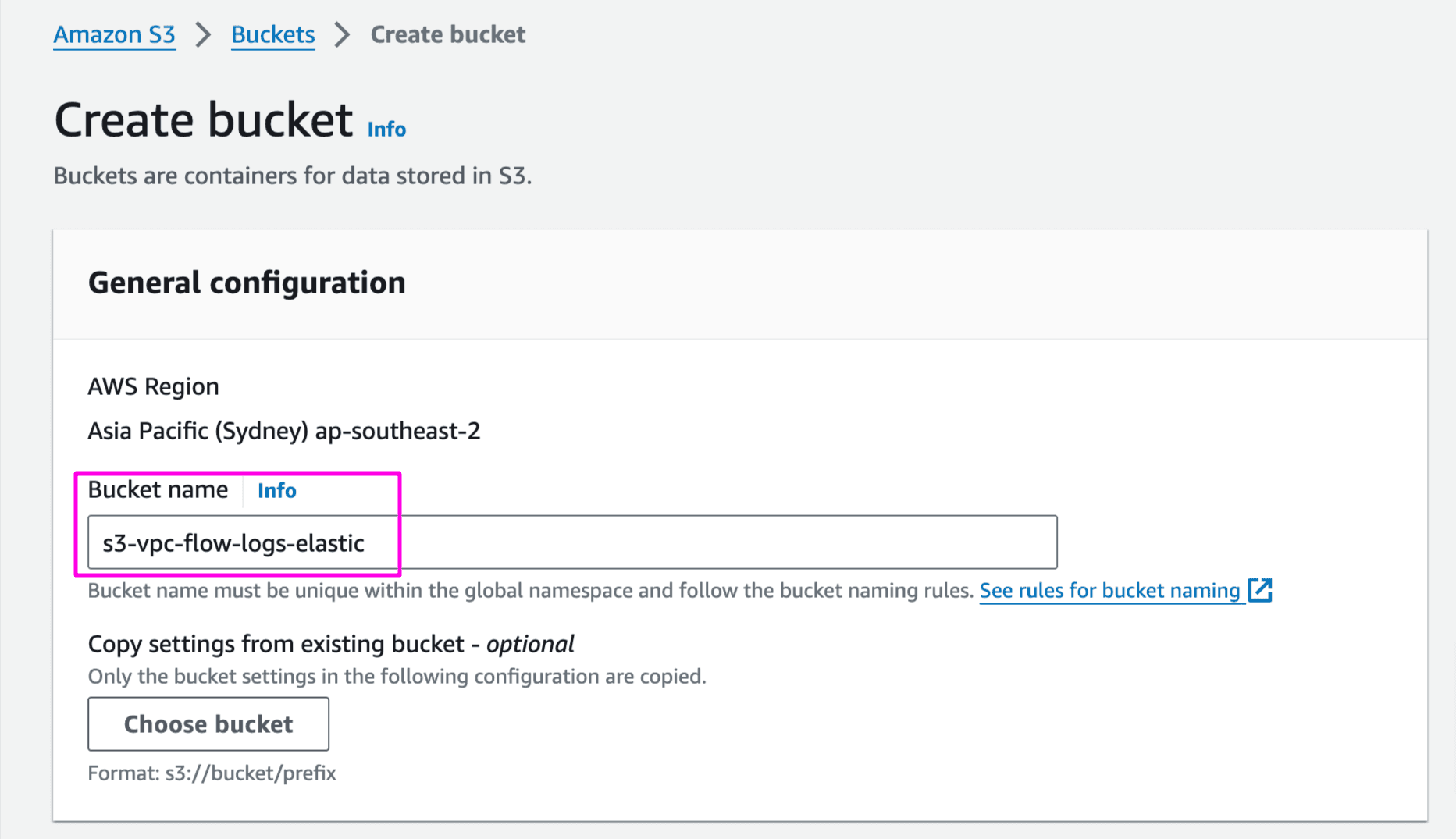

Create S3 Bucket s3-vpc-flow-logs-elastic to store VPC flow logs

AWS Console -> S3 -> Create bucket. You may leave other settings as default or change as per the requirements:

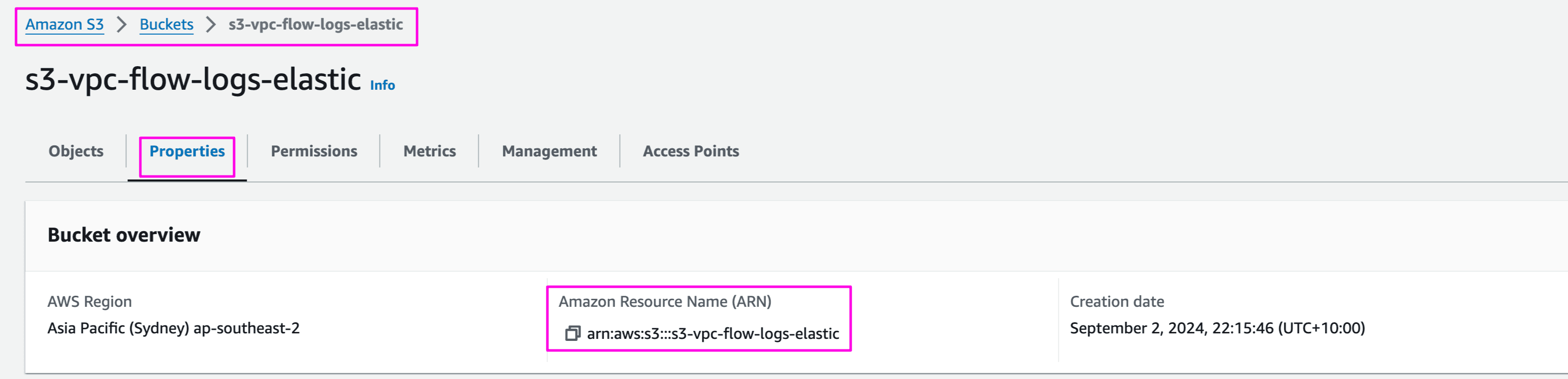

Copy the bucket ARN, required to configure flow logs in next step:

Enable VPC Flow logs and send to S3 bucket s3-vpc-flow-logs-elastic

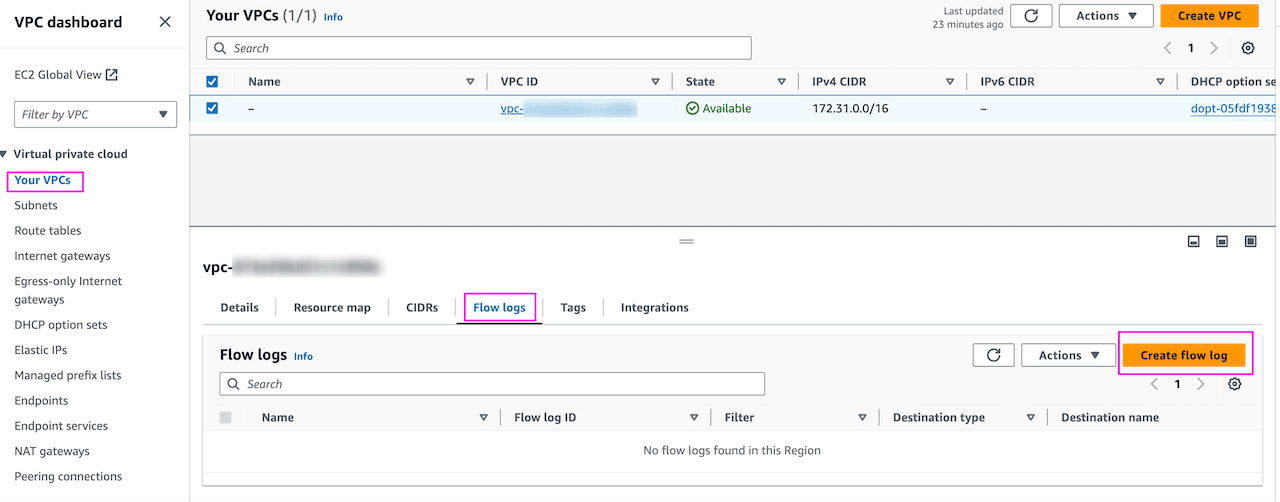

AWS Console -> VPC -> Select VPC -> Flow logs. Leave other settings as is or change as per the requirements:

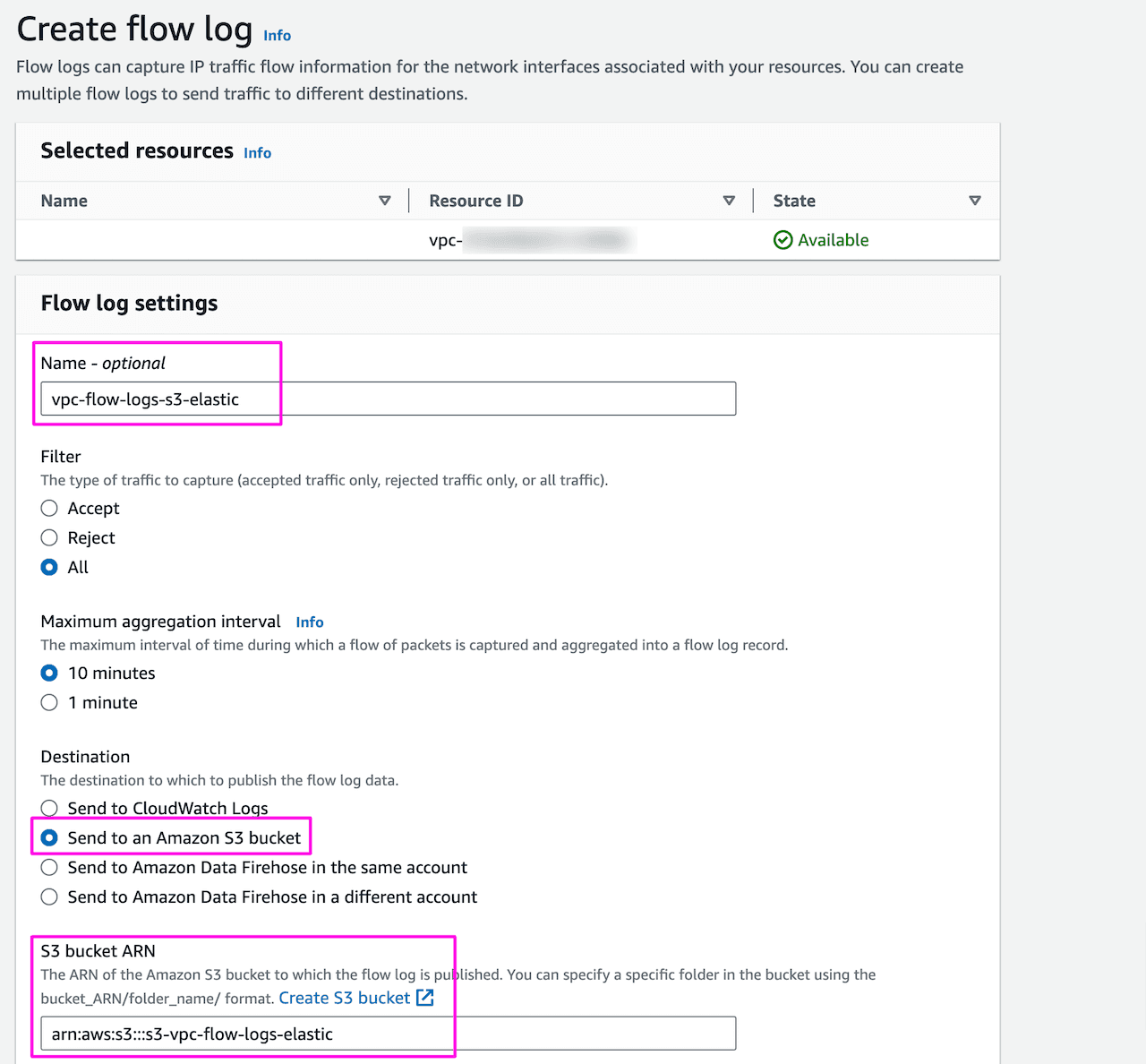

Provide name of the flow logs, select what filters to apply, aggregation interval and destination for the flow log storage:

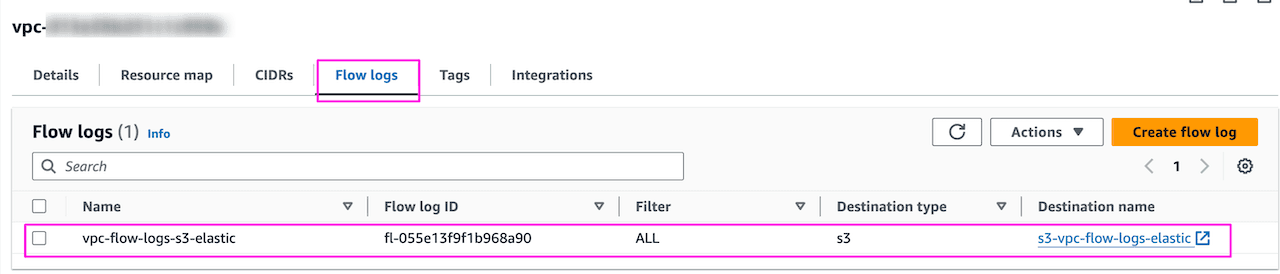

Once done, it will look like below with S3 as the destination. Going forward all the flow traffic through this VPC will be stored in the bucket s3-vpc-flow-logs-elastic :

Create SQS queue

Note 1: Create SQS queue in same region as S3 bucket

Note 2: Set the visiblity timeout of 910 second which is 10 sec more than AWS Lambda function max runtime of 900 sec.

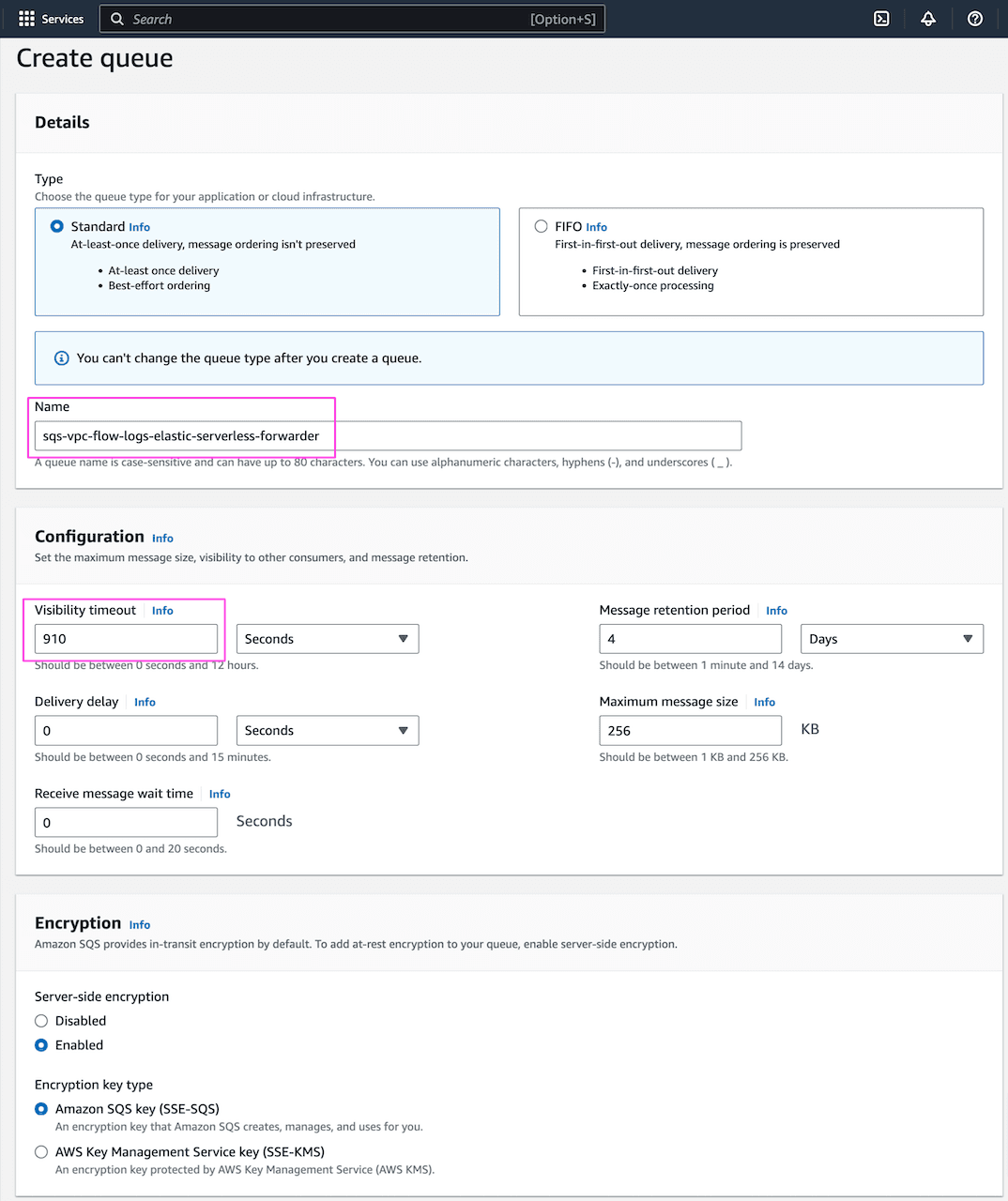

AWS Console -> Amazon SQS -> Create queue

Provide queue name and update visiblity timeout to 910 sec. Lambda function runs for max 900 sec (15min) and setting a higher value for visibility timeout allows consumer Elastic Serverless Forwarder(ESF) to process and delete the message from the queue:

Update the SQS Access Policy (Advance) to allow S3 bucket to send notification to SQS queue. Replace account-id with your AWS account ID. Keep other options as default.

Here, we are specifying S3 to send message to SQS queue (ARN) from the S3 bucket:

{
  "Version": "2012-10-17",
  "Id": "example-ID",
  "Statement": [
    {
      "Sid": "example-statement-ID",
      "Effect": "Allow",
      "Principal": {
        "Service": "s3.amazonaws.com"
      },
      "Action": "SQS:SendMessage",
      "Resource": "arn:aws:sqs:ap-southeast-2:<account-id>:sqs-vpc-flow-logs-elastic-serverless-forwarder",
      "Condition": {
        "StringEquals": {
          "aws:SourceAccount": "<account-id>"
        },
        "ArnLike": {
          "aws:SourceArn": "arn:aws:s3:::s3-vpc-flow-logs-elastic"
        }
      }
    }
  ]
}

More details on permission requirement (IAM user) for AWS integration is available here.

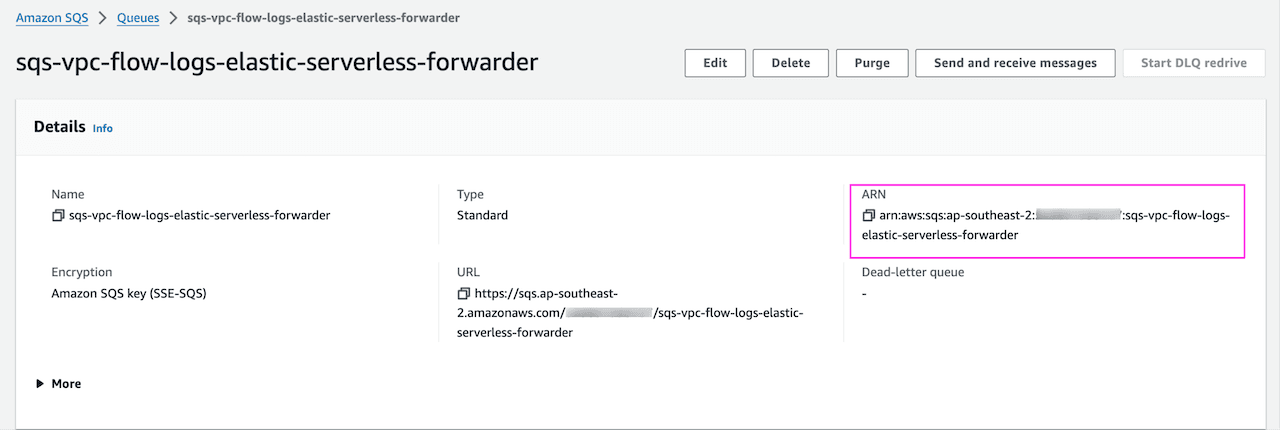

Copy the SQS ARN, in queue setting under Details:

Enable VPC flow log event notification in S3 bucket

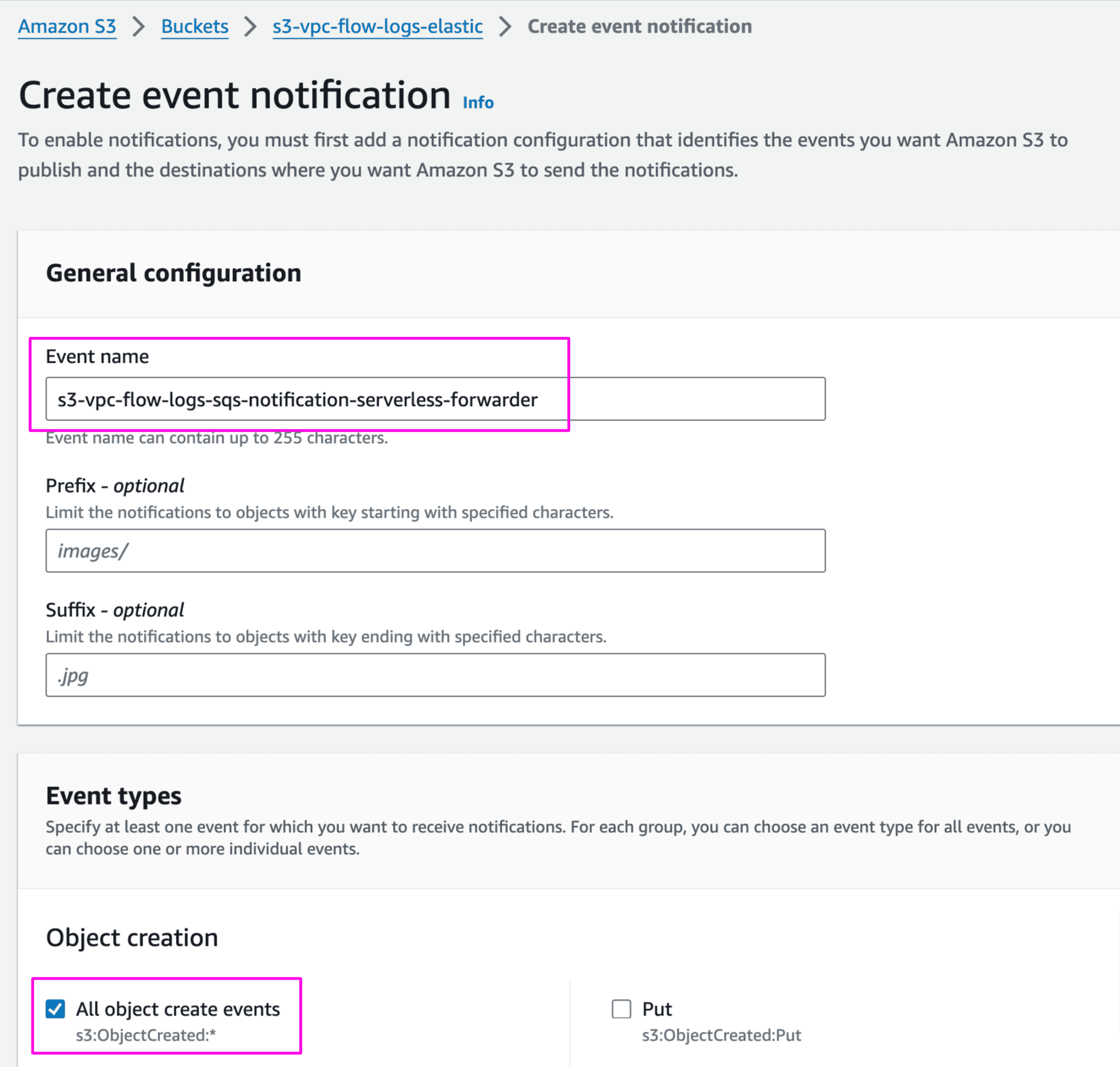

AWS Console > S3. Select bucket s3-vpc-flow-logs-elastic -> Properties and Create event notification

Provide name and on what event type you want to trigger SQS. We have selected object create when any object is added to the bucket:

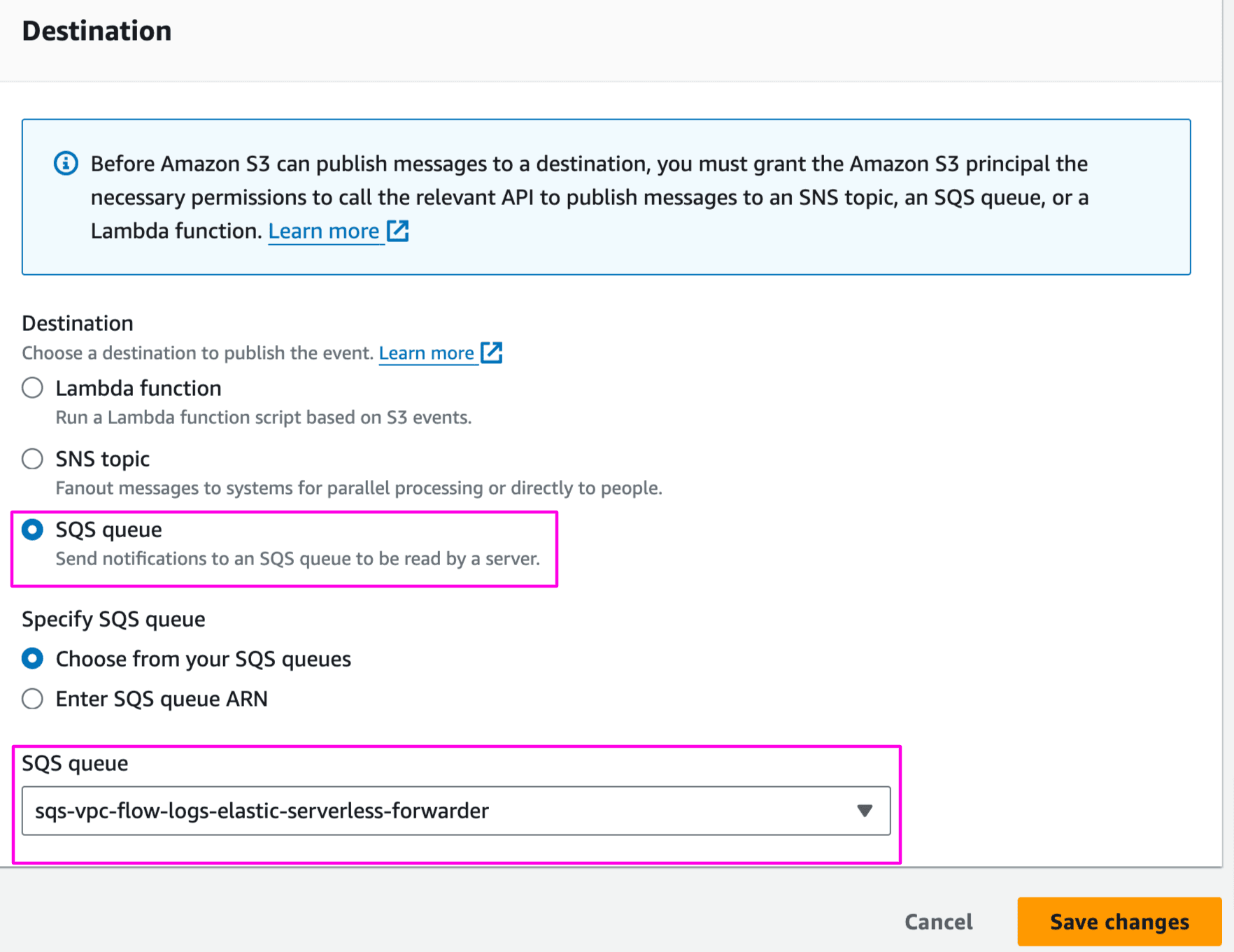

Select destination as SQS queue and choose sqs-vpc-flow-logs-elastic-serverless-forwarder:

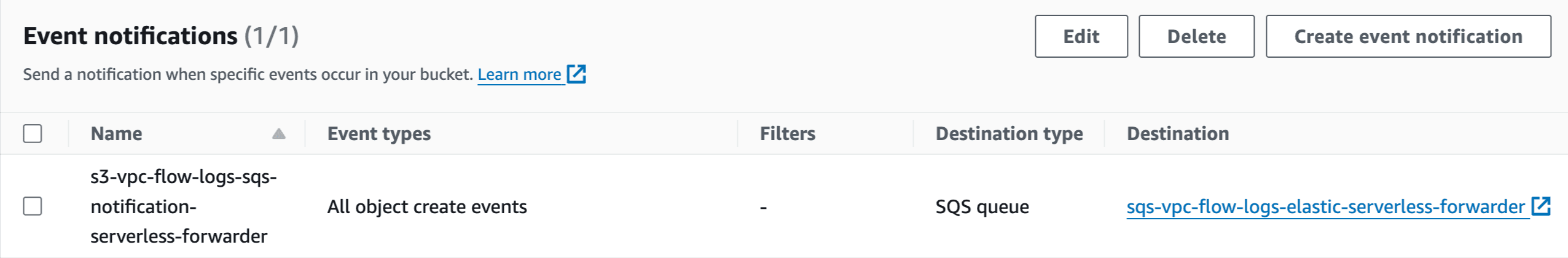

Once saved, configuration will look like below:

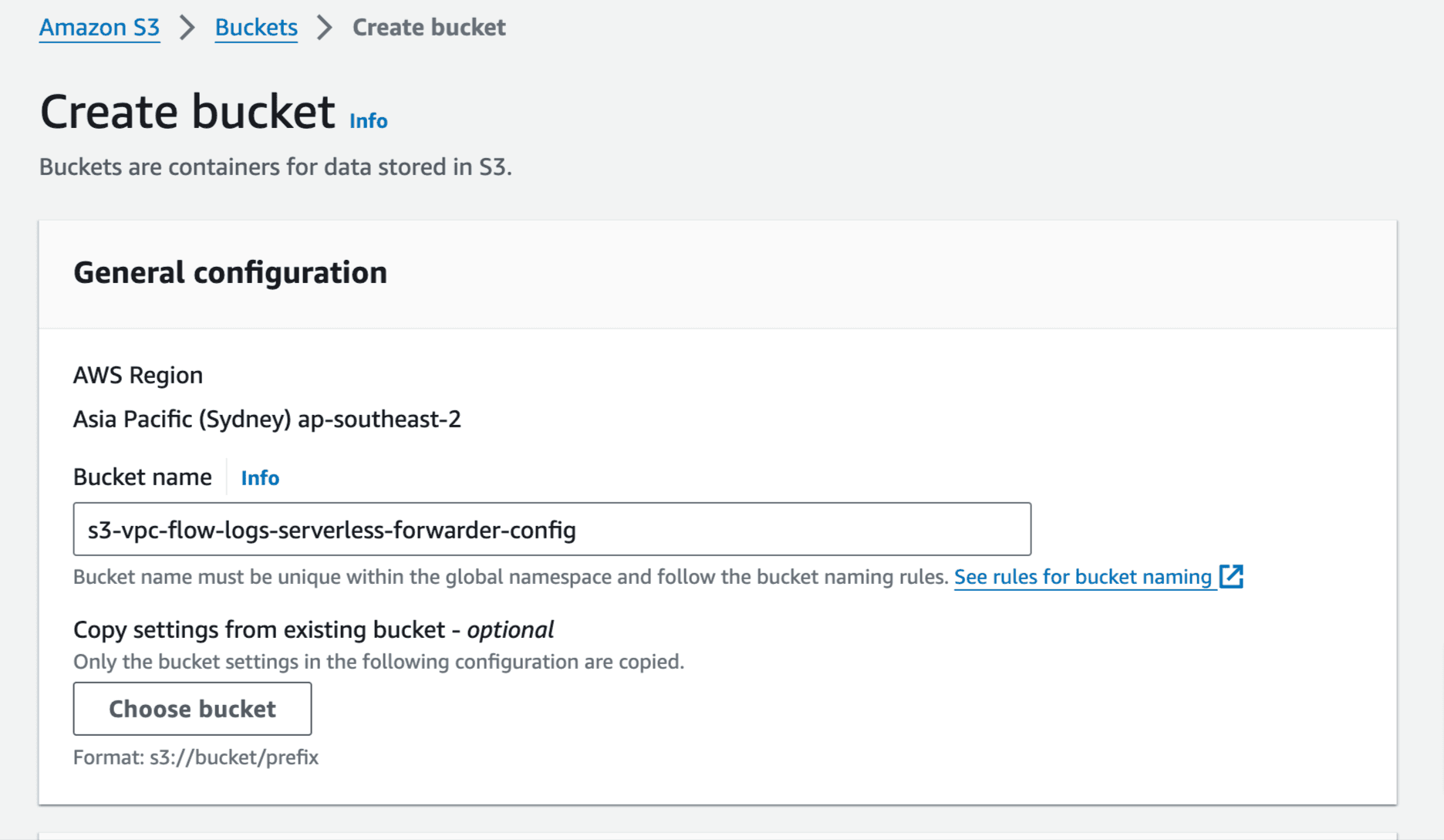

Create another S3 bucket to store configuration file for Elastic Serverless Forwarder:

Create a file named config.yaml and update with below configuration. Full set of options here:

inputs:
  - type: "s3-sqs"
    id: "arn:aws:sqs:ap-southeast-2:xxxxxxxxxx:sqs-vpc-flow-logs-elastic-serverless-forwarder"
    outputs:
      - type: "elasticsearch"
        args:
          # either elasticsearch_url or cloud_id, elasticsearch_url takes precedence if both are included
          elasticsearch_url: "https://e286410s58ae4ad6a446c10596ked613.ap-southeast-2.aws.found.io:443"
          #cloud_id: "cloud_id:bG9jYWxob3N0OjkyMDAkMA=="
          # either api_key or username/password, username/password takes precedence if both are included
          api_key: "LlVqN3Q1RUi3TThuexxxxxxxxxx9RlJRdjniY0JubktEdm9oOUtaNU9mdw=="
          #username: "username"
          #password: "password"
          #es_datastream_name: "aws.vpcflow"
          es_dead_letter_index: "esf-dead-letter-index" # optional
          batch_max_actions: 500 # optional: default value is 500
          batch_max_bytes: 10485760 # optional: default value is 10485760

input type : s3-sqs . We are using S3 with SQS notification option

output :

elasticsearch_url : elasticsearch endpoint from Elastic Cloud deployment Create section above

api_key : Create Elasticsearch API key (User API key) using instruction here

es_datastream_name : forwarder supports automatic routing of aws.cloudtrail, aws.cloudwatch_logs, aws.elb_logs, aws.firewall_logs, aws.vpcflow, and aws.waf logs . For other log types you can set it to the naming convention required.

Leave other options as default.

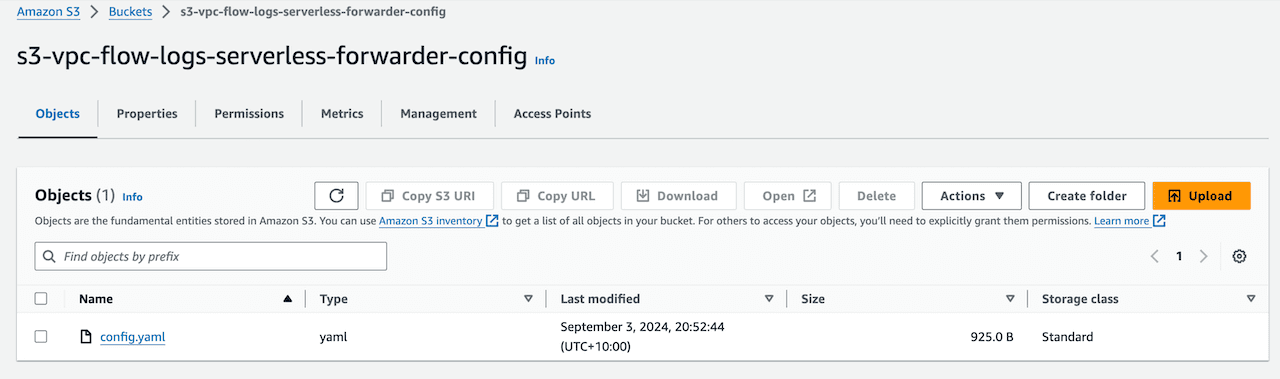

Upload the config.yaml in s3 bucket s3-vpc-flow-logs-serverless-forwarder-config:

Install AWS integration assets

Elastic integrations comes pre-packaged with assets that simplify collection, parsing , indexing and visualisation. The integrations uses data stream with specific naming convention for indices which is helpful in getting started. Forwarder can write to any other stream name too.

Follow the steps to install Elastic AWS integration.

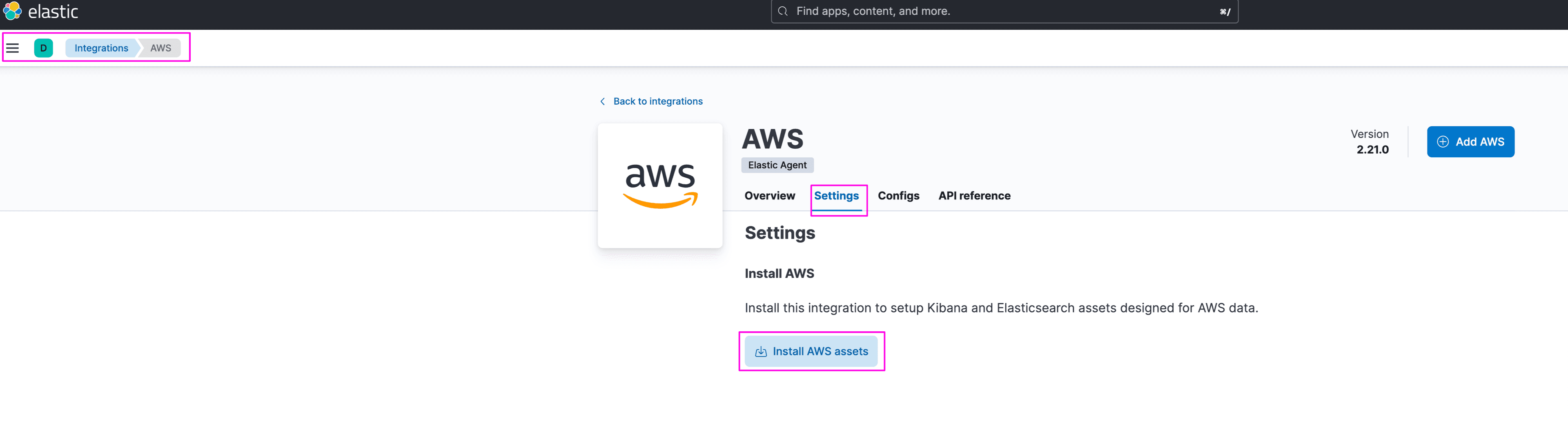

Kibana -> Management -> Integrations, Search for AWS:

Deploy the Elastic Serverless Forwarder

There are several options available to deploy Elastic Serverless Forwarder from SAR (Serverless Application Repository):

Using AWS Console
Using AWS Cloudformation
Using Terraform
Deploy directly which provides more customisation options

We will use AWS Console option to deploy ESF.

Note : Only one deployment per region is allowed when using the AWS console directly.

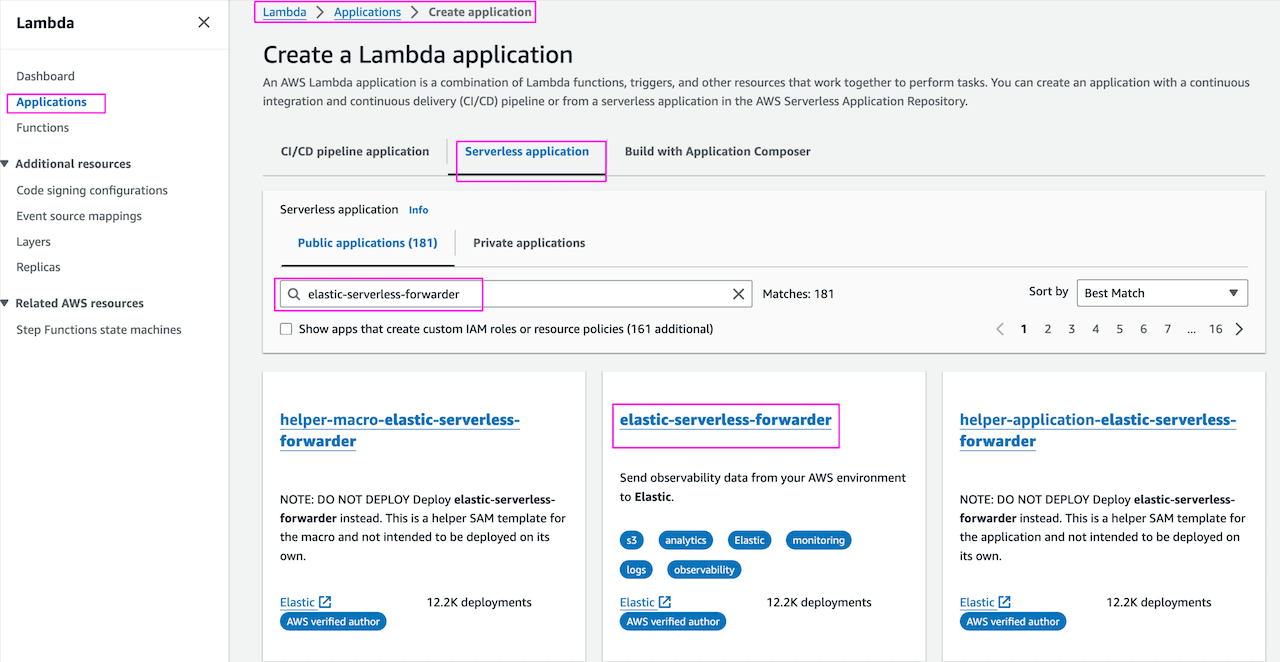

AWS Console -> Lambda -> Application -> Create Application , search for elastic-serverless-forwarder:

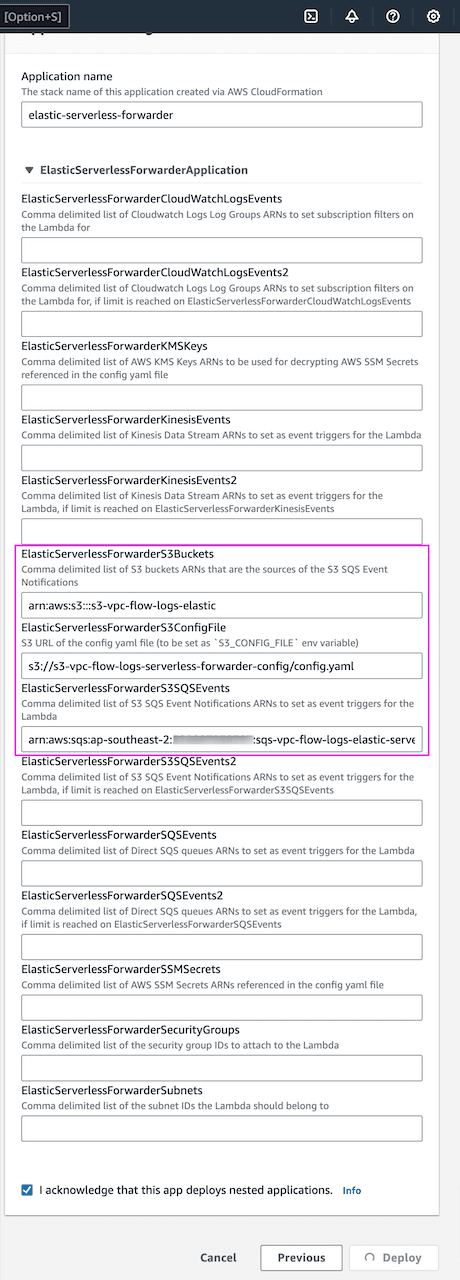

Under Application settings provide the following details:

Application name - elastic-serverless-forwarder
ElasticServerlessForwarderS3Buckets - s3-vpc-flow-logs-elastic
ElasticServerlessForwarderS3ConfigFile - s3://s3-vpc-flow-logs-serverless-forwarder-config/config.yaml
ElasticServerlessForwarderS3SQSEvent - arn:aws:sqs:ap-southeast-2:xxxxxxxxxxx:sqs-vpc-flow-logs-elastic-serverless-forwarder

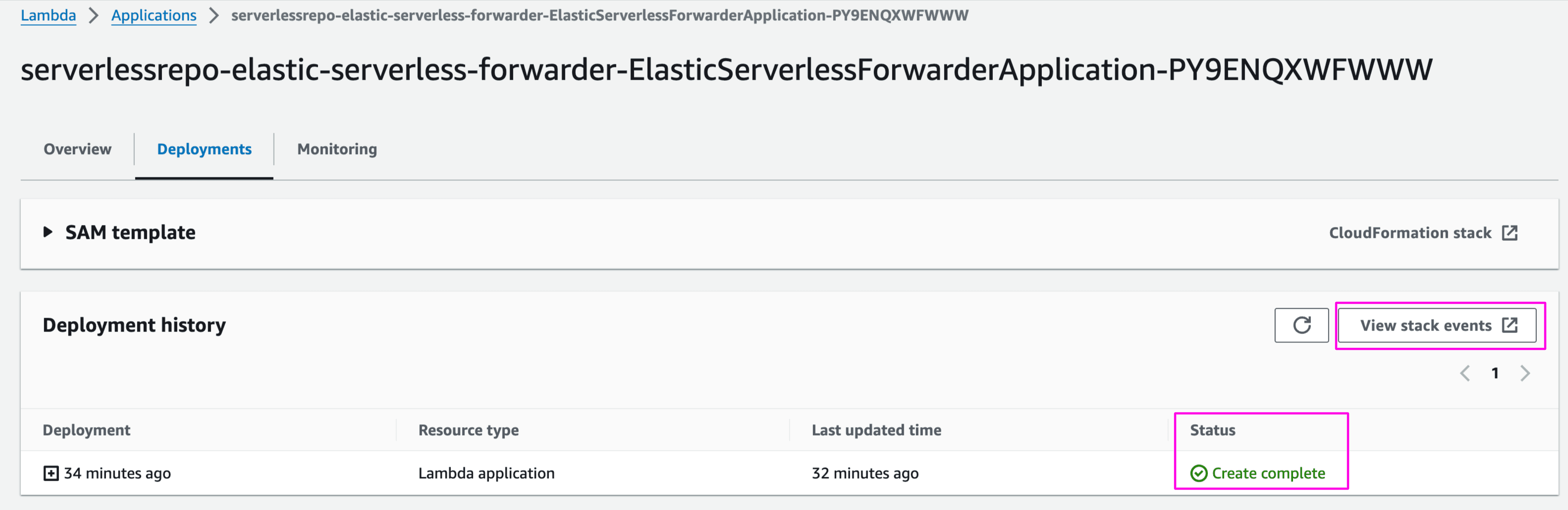

On successful deployment, status of Lambda deployment should be Create Complete:

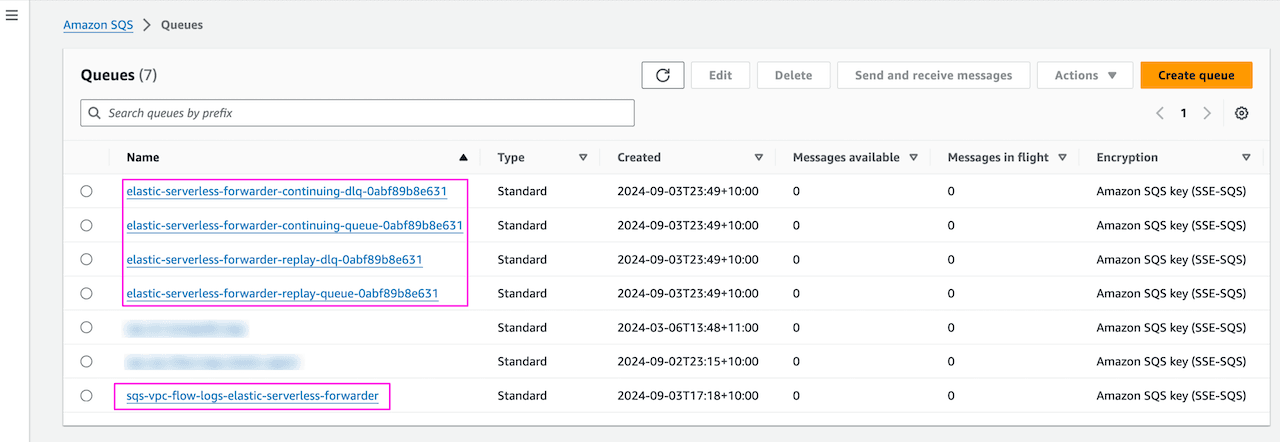

Below are the SQS queues automatically created upon successful deployment of ESF:

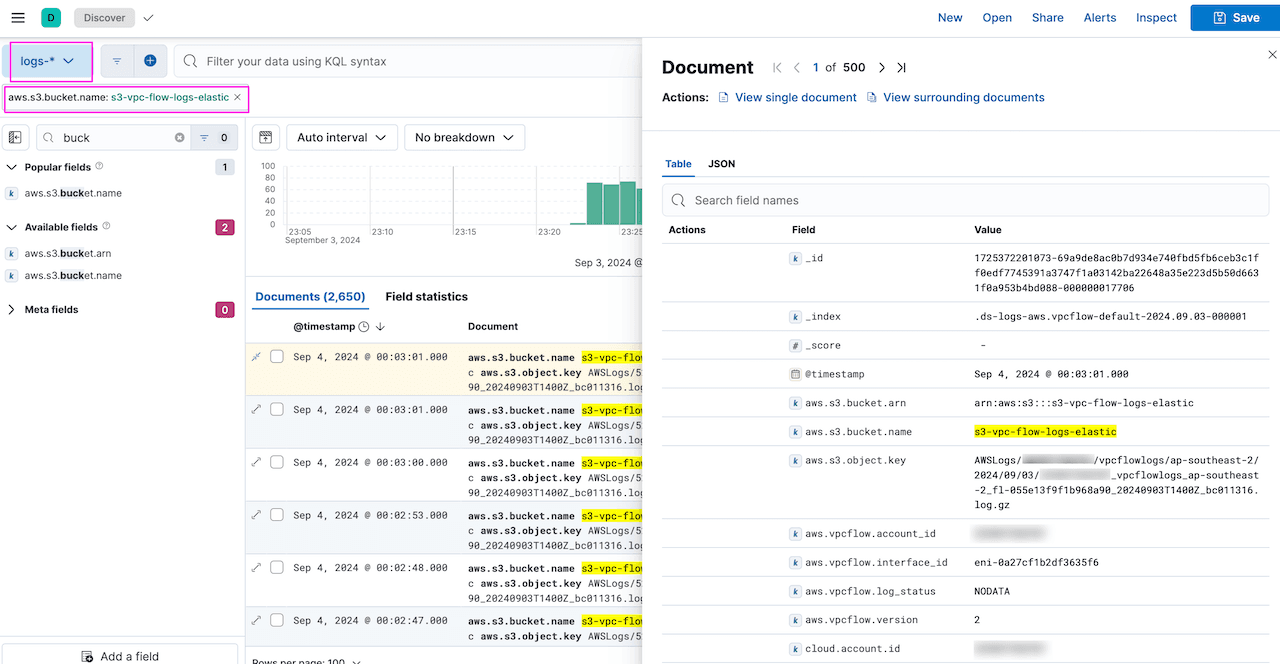

Once everything is set up correctly, published flow logs in S3 bucket s3-vpc-flow-logs-elastic will send notification to SQS and you will see the messages available in the queue sqs-vpc-flow-logs-elastic-serverless-forwarder to be consumed by ESF.

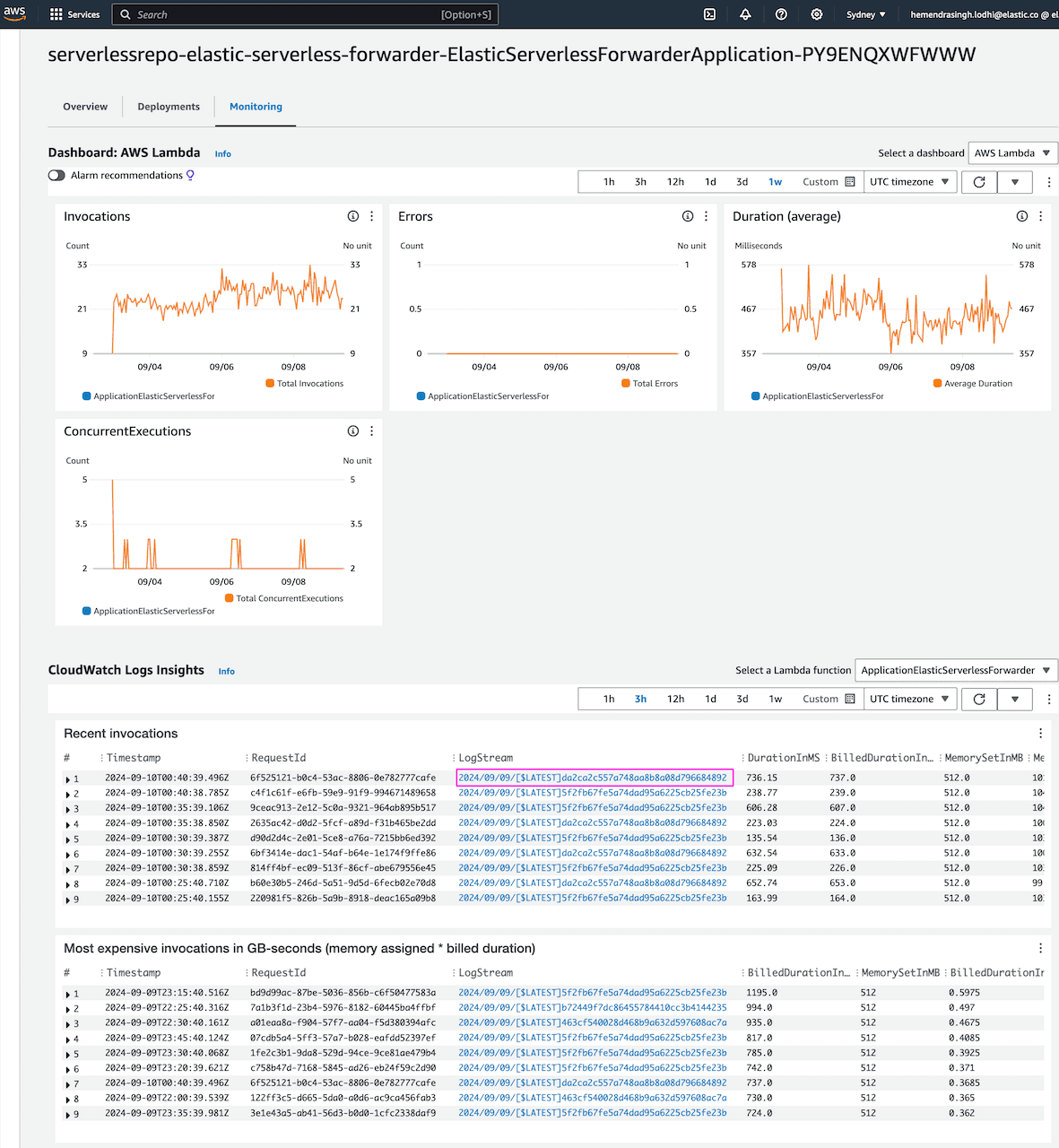

In case of issues such as SQS message count keep on increasing then check the Lambda execution logs Lambda -> Application -> serverlessrepo-elastic-serverless-forwarder-ElasticServerlessForwarderApplication* -> Monitoring -> Cloudwatch Log Insights. Click on LogStream for detailed information:

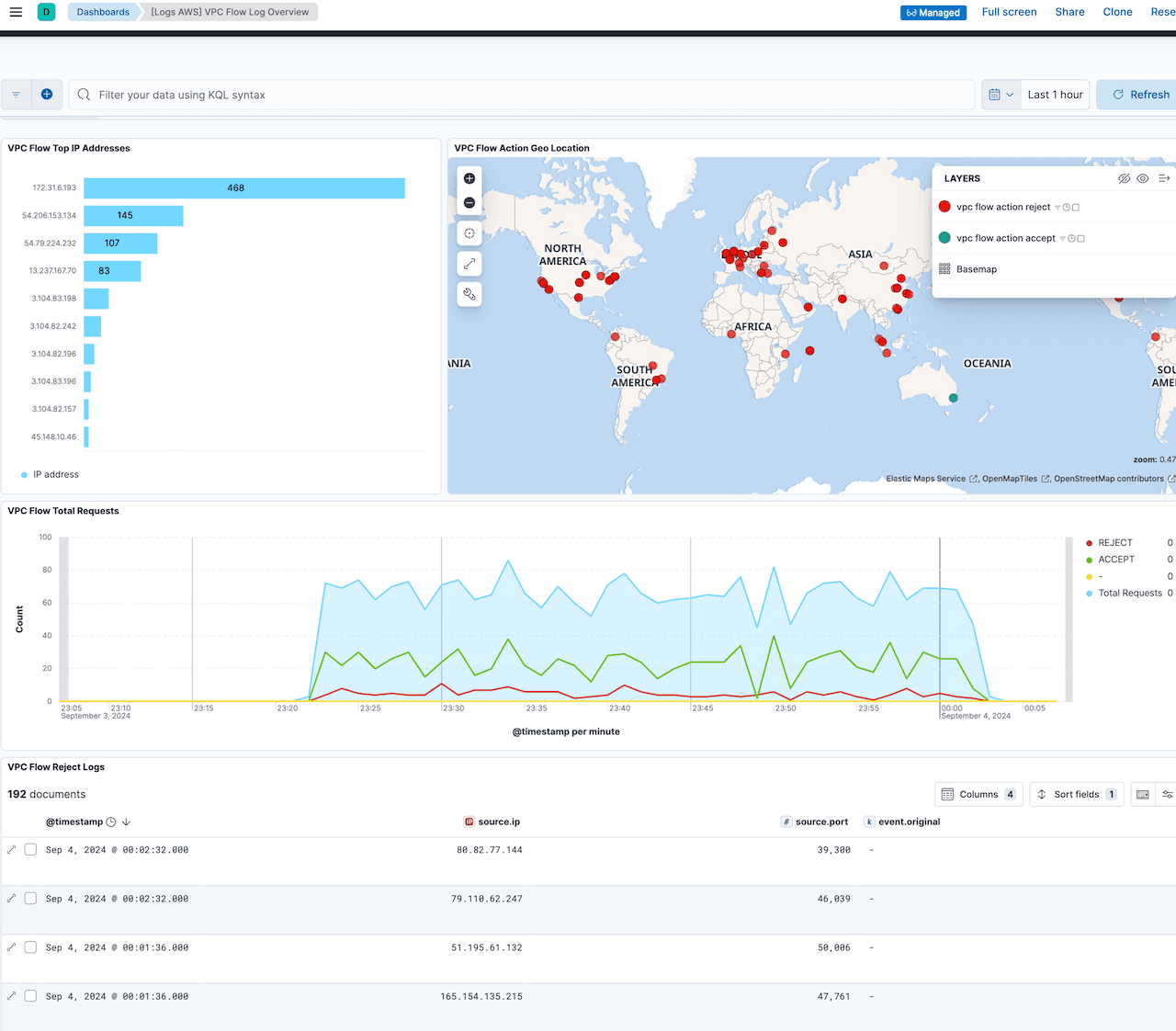

More Dashboards!

As mentioned earlier, AWS integration provides pre-built dashboards in addition to other assets. We can monitor involved AWS services in our setup using the Elastic agent ingestion method which we will cover in Part 2 of this series. This will help in tracking usage and help in optimisation.

Conclusion

Elasticsearch provides multiple options to sync data from AWS S3 into Elasticsearch deployments. In this walkthrough, we have demonstrated that it is relatively easy to implement Elastic Serverless Forwarder(ESF) ingestion options to ingest data from AWS S3 and leverage Elastic's industry-leading search & analytics capabilities.

In Part 2 of this series, we'll dive into using Elastic Agent as another option for ingesting AWS S3 data.

Check out the different ways to ingest data into Elasticsearch and dive into practical examples to try something new.

Elasticsearch is packed with new features to help you build the best search solutions for your use case. Start a free trial now.
