Elastic web crawler: Add search to your website

To demonstrate how to use the Elastic web crawler, we will take a concrete example of a website on which we want to add search. We will explore the approach to discovering the website and leveraging the features provided by the Elastic Web Crawler to best prepare the ingested data for search.

In this article we'll be using Elastic Cloud version 8.13.

What is the Elastic Web Crawler

The Elastic web crawler is an out-of-the-box tool that enables users to crawl a website and ingest its content into Elasticsearch.

The Elastic web crawler begins each crawl by visiting the entry point URLs. From there the crawler fetches the content from this webpage and extracts it. The HTML document is transformed into a search document and indexed.

Then it follows any links to which that page points to, respecting the set of rules defined by the user. The new URLs are visited using the same methodology until the crawler has indexed all of the accessible web pages. If there is no link to a web page, the crawler can’t find it.

Website discovery & web crawler creation

A first crawl

We’ll take the site Books to scrape, a website that offers a selection of book information, as an example of a simple website to crawl. It has been designed specifically for testing web crawlers.

If you’re using Elastic Cloud the setup is straightforward as the Elastic Web Crawler is available out-of-the-box. If you manage your own Elastic deployment, make sure to check this page for requirements.

Let’s begin from the Kibana homepage. From there, navigate to the Search solution then create a new Web Crawler.

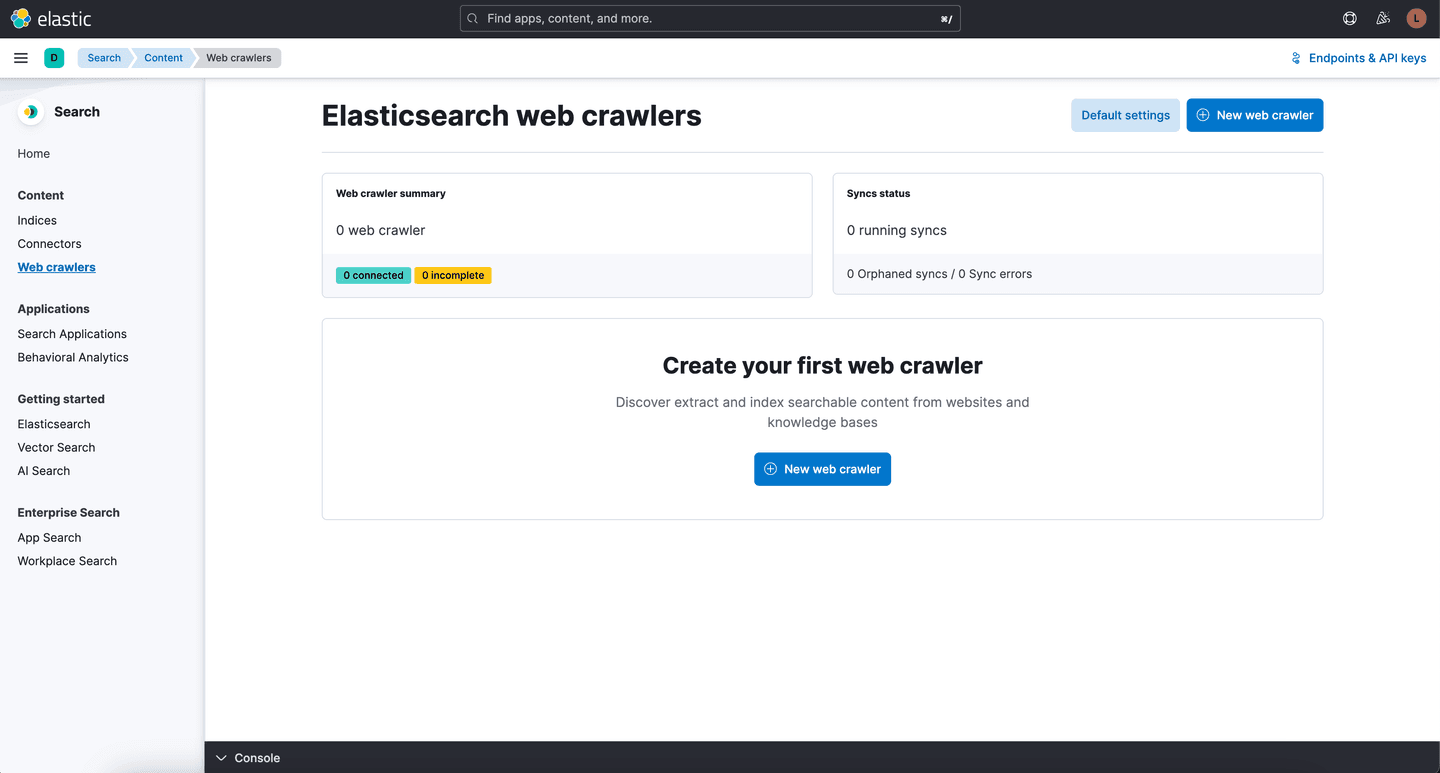

Web crawler homepage

Provide a name for the index, in our case search-books and enter the main website URL in the next screen: https://books.toscrape.com/. Then validate the domain and wait for the execution of few checks to make sure the domain can be crawled.

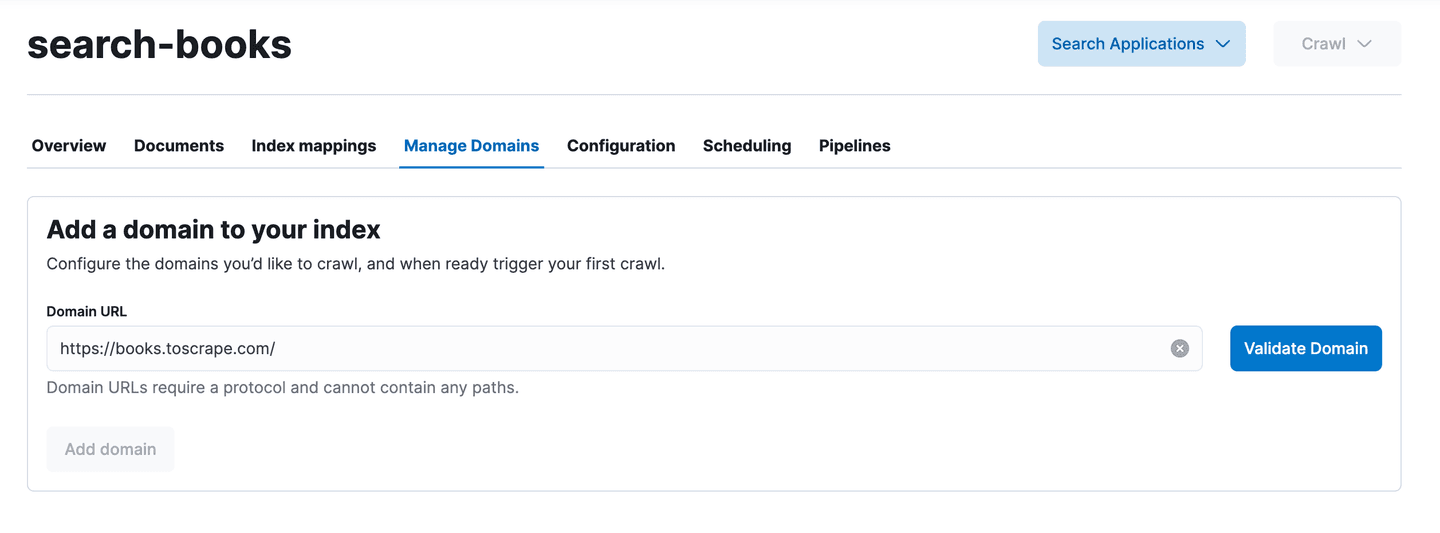

Add a new domain

At this point, let’s already crawl the website with the default configuration by clicking on Crawl => Crawl all domains. Doing so, we will see what links are being crawled and how the documents are being indexed for each web page.

Looking at the Documents list, we see that some category pages are also crawled, we are not interested in those as we want to only crawl the book detail pages.

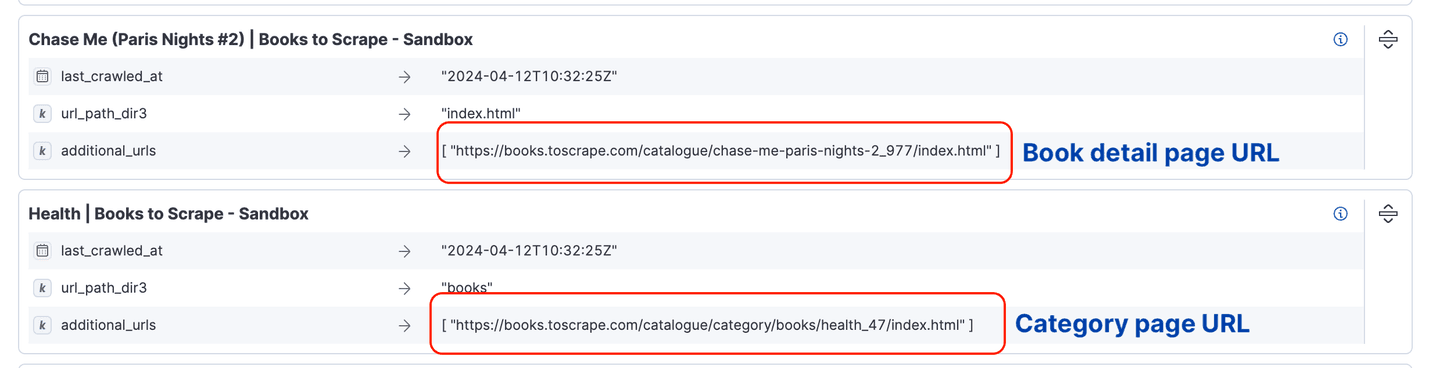

Document list

Another thing we notice when expanding a book document, is that the book price or summary are mixed up together in the field body_content. Therefore making that important information not easily usable in a search query.

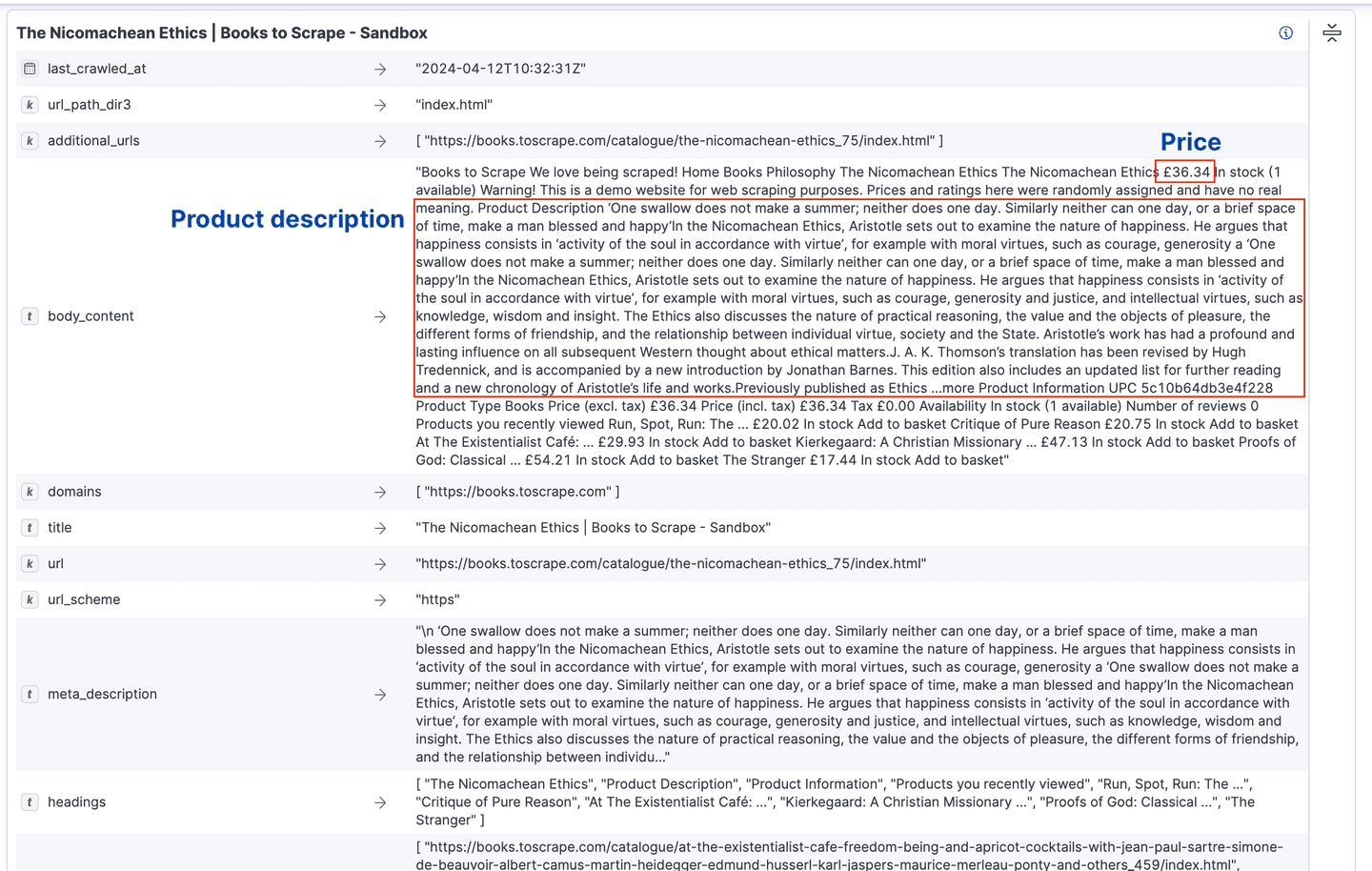

Document view

Define crawl rules

From our first crawl, we noticed that the category pages were crawled and we are not interested in them, so let’s exclude them from the crawling.

Under Crawl rules, add a new rule to disallow crawling pages that Begins with the path pattern /catalogue/category/.

Crawl rules

We can run a new crawl now with the new rule in place.

Note: As part of the exploration process, each time we will change the web crawler configuration, I will recommend deleting the content. In the last chapter Prepare for production deployment, we will see how to re-run the web crawler without manually deleting the data.

# Delete all documents
POST search-books/_delete_by_query
{
  "query": {"match_all": {}}
}

Enrich the data extracted by the web crawler

By default, the Elastic Web Crawler extracts all the information from the webpage using a default schema. By example, the HTML tag <title> is extracted in a field title and the tag <body> is extracted in a field body_content. It is a good base to work with, but most of the times, we will want to customize how the data is extracted and enrich it to be used in a search application.

Extract data from custom field

Looking at how the documents were being indexed, we noticed we would like to extract the book summary and price in their own separate fields.

It's typical to customize how the crawler extracts content from webpages when exploring a new website, and to achieve this, extraction rules are a great tool.

Using the browser inspector, we can see what HTML tag contains the price text, here it is a HTML tag <p> with class=price_color.

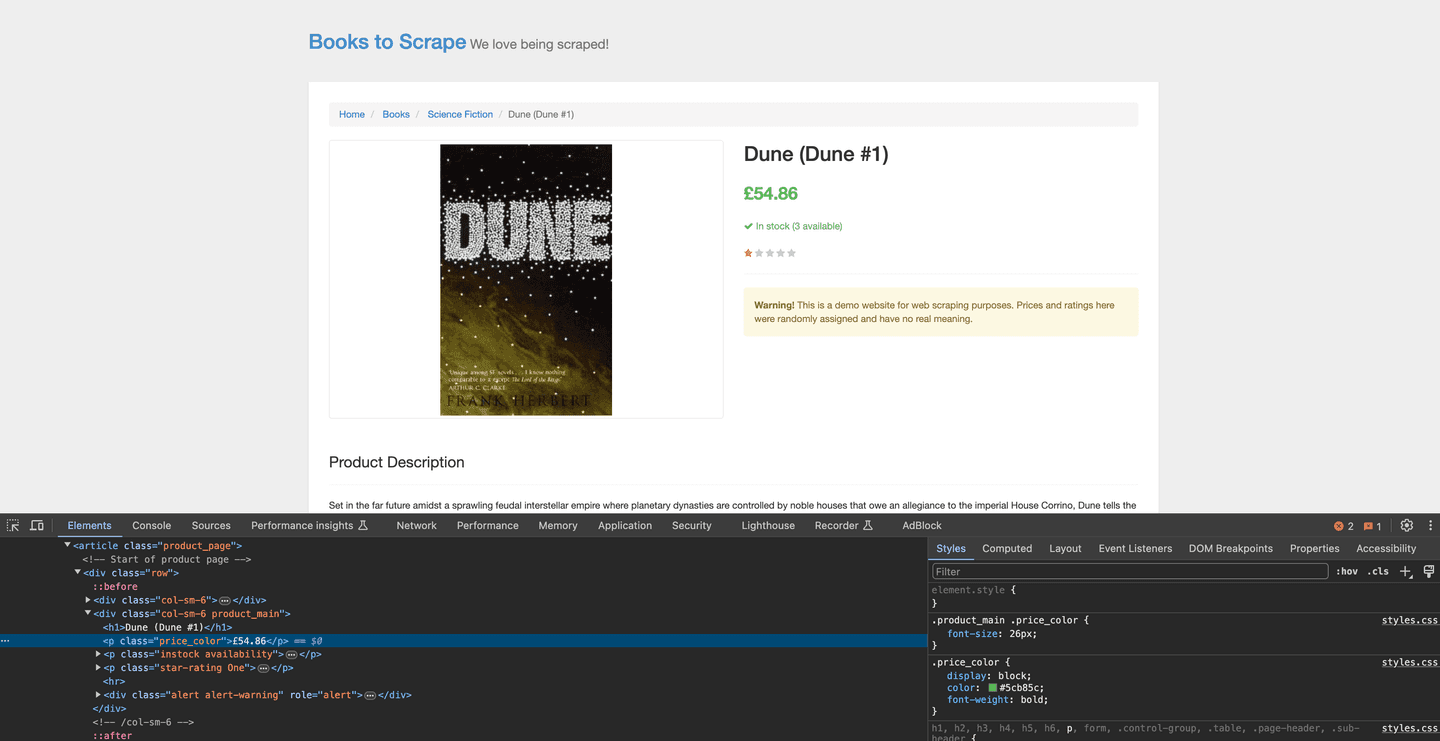

Book detail page

Extraction rules use CSS Selector or XPath to identify specific elements in the webpage. We can test them using the browser console.

To try XPath, we can use the function $x. For example, to return the book summary node, we can run $x("//article[@class='product_page']/p")[0] in the browser console.

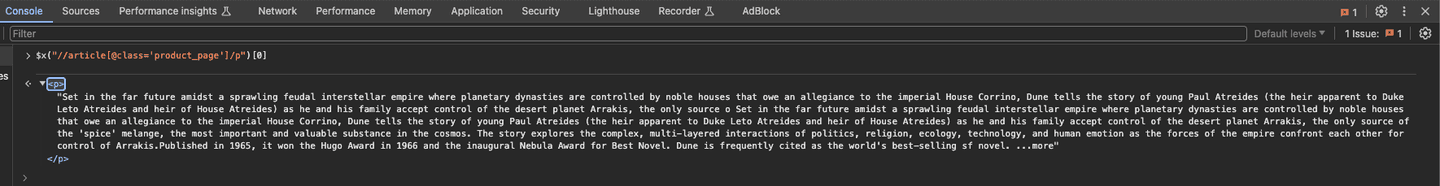

XPath

To try CSS Selector, we can use document.querySelectorAll. For example, to select the price using CSS Selector, we can run: document.querySelectorAll("div.product_main p.price_color")[0] in the browser console.

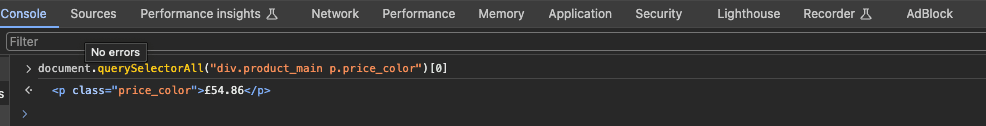

CSS Selector

Using what we tested in the browser console, let’s create an extraction rule to add two new fields: summary and price.

Extraction rule:

  • Name: book page rules
  • Apply to All URLs
  • First field:
    • Field name: summary
    • Source: Extract content from HTML element
    • CSS Selector: //article[@class='product_page']/p
    • Content: Use content from Extracted Value
    • Store extracted content as a String
  • Second field
    • Field name: price
    • Source: Extract content from HTML element
    • CSS Selector: div.product_main p.price_color
    • Content: Use content from Extracted Value
    • Store extracted content as a String

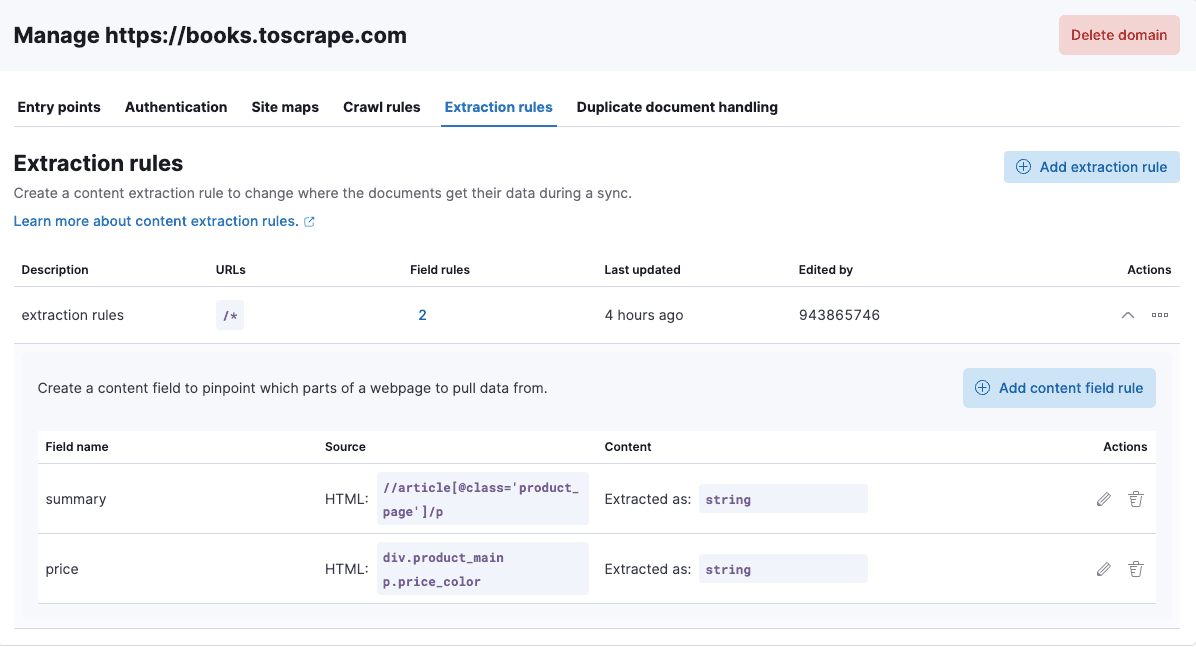

Extraction rules

Ingest pipeline to transform data

More often than not the data extracted from a web page is not perfectly formatted to be used in a search engine. In our case, we have extracted the book price in a separate price field, but if we look closely, it has been indexed as a string: "£18.03", which is not ideal to perform search using comparison (i.e get all books cheaper than £20), or aggregations (i.e what is the average price of a sci fi book).

To make some small transformations at ingest time, we can use the ingest pipelines in Elasticsearch. There are many processors available to do different tasks, in our case, we’re going to use a Script processor to execute a custom function for each document being indexed, that will strip the first character out of the price to keep only the numeral part.

To manage ingest pipelines, go to the Pipelines tab and click on Copy and Customize then Click on Edit pipeline button to begin editing the ingest pipelines.

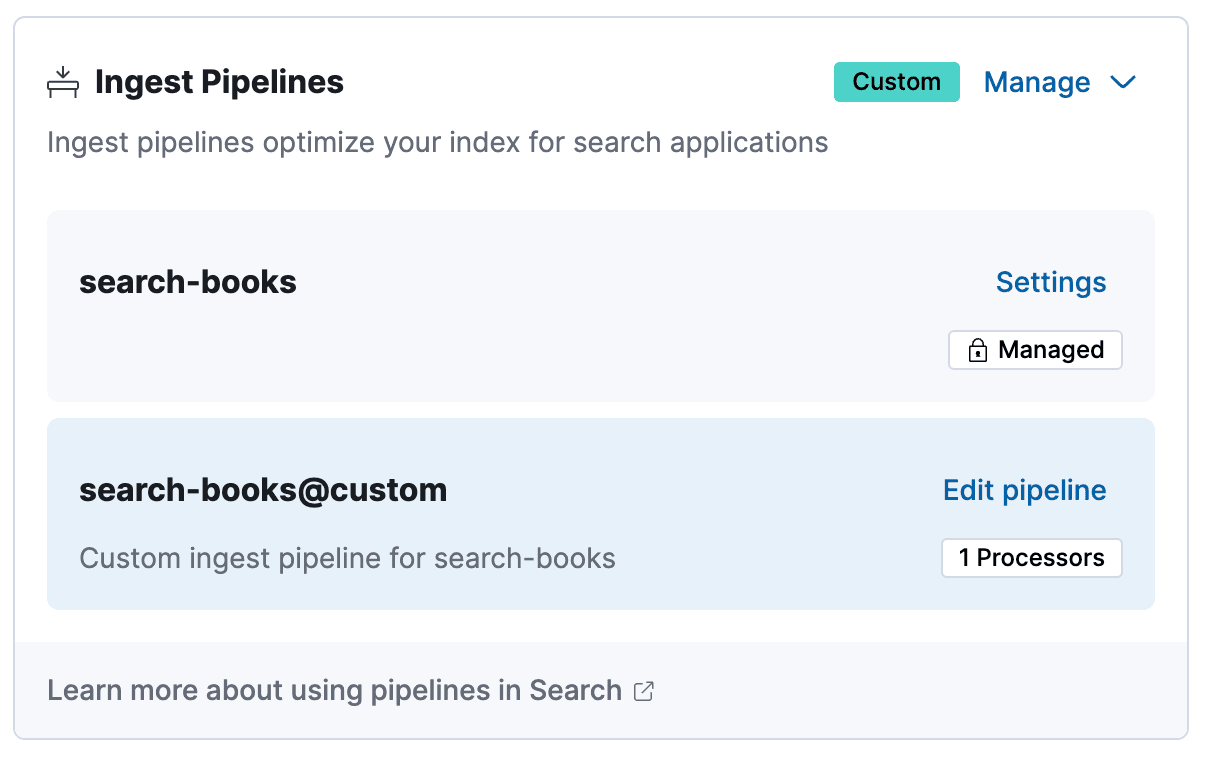

Ingest pipelines

There add a Script processor with the following code:

ctx['price_float'] = ctx['price'].substring(1)

Save everything and go back to the web crawler index configuration page.

The script we added will create a new field called price_float at ingest time. We need to edit the index mapping to provide the correct field type, in our case we would like to index it as a float.

Open the console and execute the following code to update the index mapping:

# Add a new field with a type float
PUT search-books/_mapping
{
  "properties": {
    "price_float": {
      "type": "float"
    }
  }
}

Now we can delete all the documents in the index and run the crawl again. A new field price_float with float type is present in all documents.

Enable semantic search with ML Inference pipeline

Another type of pipeline we can use to enrich data is the Inference pipeline that allows us to run ML models against the data that is being indexed.

In our case, we want to leverage Elastic's proprietary ML model called ELSER that enables semantic search on any English text.

Back to the Pipelines tab, we scroll down to the Machine Learning Inference Pipelines part. Here we can deploy and start the ELSER model if not done already.

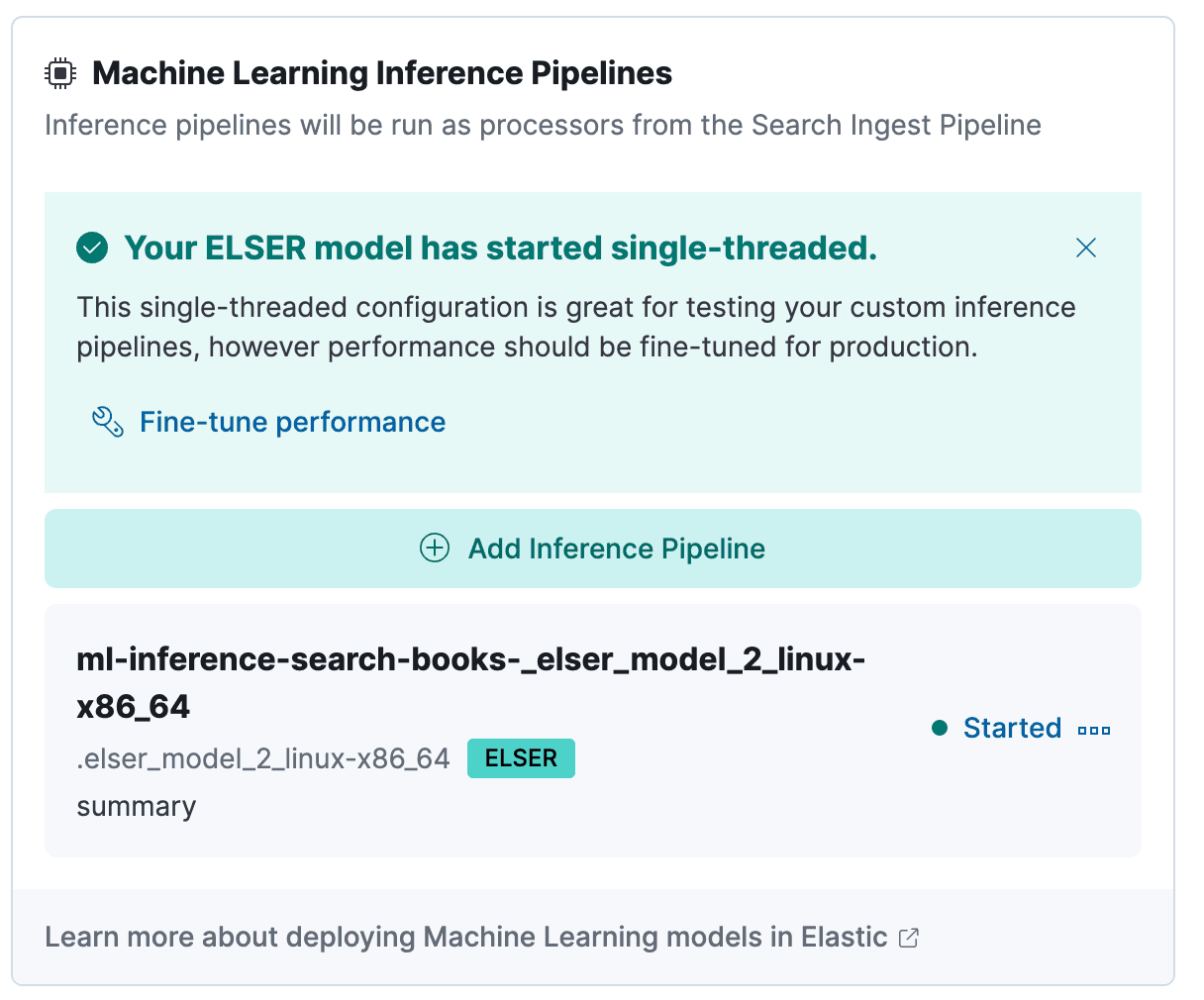

ML inference pipelines

Then, let’s add a new Inference pipeline by clicking on the Add Inference Pipeline button. On the first screen select the ELSER model then go to the next screen where we pick the input and output fields of the inference pipeline. In our case, we want to enable semantic search on the book summary. We select that field and add it to the list.

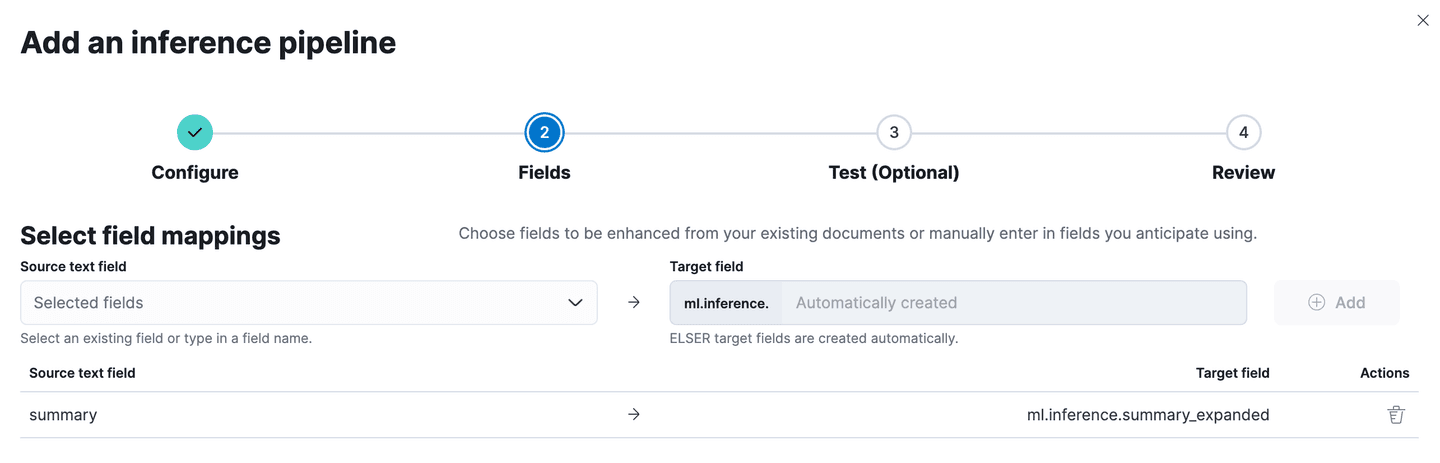

ML inference configuration

After finishing the configuration, we can remove all the documents and run the web crawler one more time.

Test search query

After configuring the web crawler using the extraction rules and ingest pipelines, our documents are easy to search on.

Let’s see a query example that performs a semantic search on the book summary and has a filter based on the book price.

# Find books over £50 that talks about "Wars and family succession struggle on dry planets"
POST search-books/_search
{
  "_source": [
    "title", "summary", "price", "url"
  ],
  "query": {
    "bool": {
      "should": [
        {
          "text_expansion": {
            "ml.inference.summary_expanded.predicted_value": {
              "model_id": ".elser_model_2_linux-x86_64",
              "model_text": "Wars and family succession struggle on dry planets"
            }
          }
        }
      ],
      "filter": [
        {
          "range": {
            "price_float": {
              "gte": 50
            }
          }
        }
      ]
    }
  }
}

Preparing the web crawler for production deployment

In this chapter, we’ll discuss specific features of the web crawler that are important when it comes to putting the web crawler into production.

Scheduling

As a website gets updated frequently, it might be important to keep the data in Elasticsearch up-to-date with the website. For that, we can schedule frequent crawls of the website using the scheduling capabilities of the Elastic Web Crawler.

The Elastic Web Crawler detects automatically if a web page has been updated since the last crawl, and will update the corresponding documents in Elasticsearch. If a web page has been deleted since the last crawl, the document will then be deleted from Elasticsearch.

Protected website

Another useful feature is the ability to crawl websites that are not publicly available or are behind an authentication.

This documentation explains in detail how to crawl a website that is in a private network.

If the website requires authentication to access specific web pages, we can add the credentials or a specific header in the Authentication under the Domain configuration screen.

Conclusion

In this blog-post, we saw how to discover a new website to crawl from end-to-end, how to leverage the Elastic Web crawler features to prepare the data to be used in a search application and finally how to get ready to deploy this in production.

If you're interested in learning more about Elastic ingestion capabilities, check the other out-of-the-box connectors. If you want to use the ingested data in a GenAI Application, check out our tutorials.

You can build search with data from any source. Check out this webinar to learn about different connectors and sources that Elasticsearch supports.
Ready to try this out on your own? Start a free trial.
