Create a custom threshold rule

Create a custom threshold rule to trigger an alert when an Elastic Observability Serverless data type reaches or exceeds a given value.

Specify the following settings to define the data the rule applies to:

Set the conditions for the rule to detect using aggregations, an equation, and a threshold.

Aggregations summarize your data to make it easier to analyze. Set any of the following aggregation types to gather data to create your rule: Average, Max, Min, Cardinality, Count, Sum, Percentile, or Rate. For more information about these options, refer to Aggregation options.

For example, to gather the total number of log documents with a log level of warn:

Set an equation using your aggregations. Based on the results of your equation, set a threshold to define when to trigger an alert. The equations use basic math or boolean logic. Refer to the following examples for possible use cases.

Add, subtract, multiply, or divide your aggregations to define conditions for alerting.

Example: Set an equation and threshold to trigger an alert when a metric is above a threshold. For this example, we’ll use average CPU usage—the percentage of CPU time spent in states other than idle or IOWait normalized by the number of CPU cores—and trigger an alert when CPU usage is above a specific percentage. To do this, set the following aggregations, equation, and threshold:

Use conditional operators and comparison operators with you aggregations to define conditions for alerting.

Example: Set an equation and threshold to trigger an alert when the number of stateful pods differs from the number of desired pods. For this example, we’ll use kubernetes.statefulset.ready and kubernetes.statefulset.desired, and trigger an alert when their values differ. To do this, set the following aggregations, equation, and threshold:

The preview chart provides a visualization of how many entries match your configuration. The shaded area shows the threshold you’ve set.

If you use the Group alerts by option, the maximum bar size will be 3. It will only show the top 3 fields.

Set one or more group alerts by fields for custom threshold rules to perform a composite aggregation against the selected fields. When any of these groups match the selected rule conditions, an alert is triggered per group.

When you select multiple groupings, the group name is separated by commas.

For example, if you group alerts by the host.name and host.architecture fields, and there are two hosts (Host A and Host B) and two architectures (Architecture A and Architecture B), the composite aggregation forms multiple groups.

If the Host A, Architecture A group matches the rule conditions, but the Host B, Architecture B group doesn’t, one alert is triggered for Host A, Architecture A.

If you select one field—for example, host.name—and Host A matches the conditions but Host B doesn’t, one alert is triggered for Host A. If both groups match the conditions, alerts are triggered for both groups.

Optionally configure the rule to trigger an alert when:

To do this, select Alert me if there’s no data.

The behavior of the alert depends on whether any group alerts by fields are specified:

You can extend your rules with actions that interact with third-party systems, write to logs or indices, or send user notifications. You can add an action to a rule at any time. You can create rules without adding actions, and you can also define multiple actions for a single rule.

To add actions to rules, you must first create a connector for that service (for example, an email or external incident management system), which you can then use for different rules, each with their own action frequency.

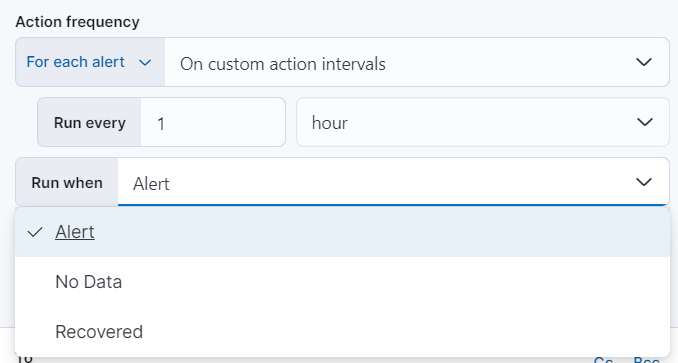

Action frequency

After you select a connector, you must set the action frequency. You can choose to create a summary of alerts on each check interval or on a custom interval. Alternatively, you can set the action frequency such that you choose how often the action runs (for example, at each check interval, only when the alert status changes, or at a custom action interval). In this case, you must also select the specific threshold condition that affects when actions run: Alert, No Data, or Recovered.

You can also further refine the conditions under which actions run by specifying that actions only run when they match a KQL query or when an alert occurs within a specific time frame:

• If alert matches query: Enter a KQL query that defines field-value pairs or query conditions that must be met for notifications to send. The query only searches alert documents in the indices specified for the rule.
• If alert is generated during timeframe: Set timeframe details. Notifications are only sent if alerts are generated within the timeframe you define.

Action variables

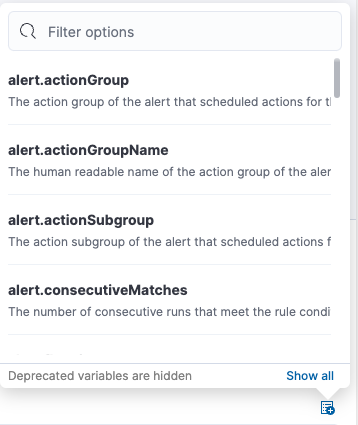

Use the default notification message or customize it. You can add more context to the message by clicking the Add variable icon and selecting from a list of available variables.

The following variables are specific to this rule type. You can also specify variables common to all rules.

context.alertDetailsUrl

Link to the alert troubleshooting view for further context and details. This will be an empty string if the server.publicBaseUrl is not configured.

context.cloud

The cloud object defined by ECS if available in the source.

context.container

The container object defined by ECS if available in the source.

context.group

The object containing groups that are reporting data.

context.host

The host object defined by ECS if available in the source.

context.labels

List of labels associated with the entity where this alert triggered.

context.orchestrator

The orchestrator object defined by ECS if available in the source.

context.reason

A concise description of the reason for the alert.

context.tags

List of tags associated with the entity where this alert triggered.

context.timestamp

A timestamp of when the alert was detected.

context.value

List of the condition values.

context.viewInAppUrl

Link to the alert source.
